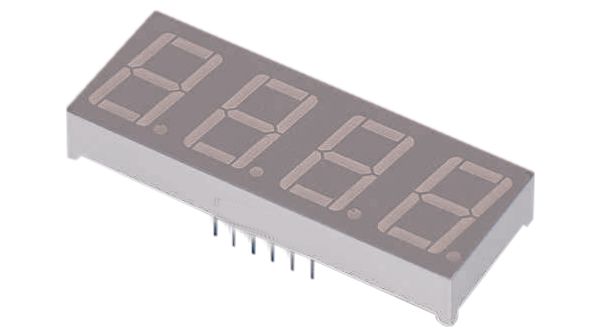

Brilliant yellow-green 4-digit numeric LED display, 14.22mm viewing height, featuring 8 elements per character. This through-hole mount, DIP package component operates with a 25mA forward current and 2V supply voltage. It offers a luminous intensity of 4.5mcd at 575nm wavelength, with a maximum power dissipation of 60mW. The display is RoHS compliant and operates across a temperature range of -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Everlight ELF-511SYGWA/S530-E2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Everlight ELF-511SYGWA/S530-E2 technical specifications.
| Package/Case | DIP |
| Color | Green, Yellow |
| Depth | 19mm |
| Display Type | Segment |
| Forward Current | 25mA |
| Height | 0.748inch |
| Illumination Color | Green |
| Lead Free | Lead Free |
| Length | 50.4mm |
| Luminous Intensity | 4.5mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 60mW |
| Mount | Through Hole |
| Number of Characters | 4 |
| Number of Elements | 8 |
| Number of Positions | 4 |
| Operating Supply Voltage | 2V |
| Package Quantity | 10 |
| Packaging | Rail/Tube |
| Power Dissipation | 60mW |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Viewing Area (height) | 14.22mm |
| Wavelength | 575nm |
| Width | 1.984inch |
| RoHS | Compliant |
Download the complete datasheet for Everlight ELF-511SYGWA/S530-E2 to view detailed technical specifications.
