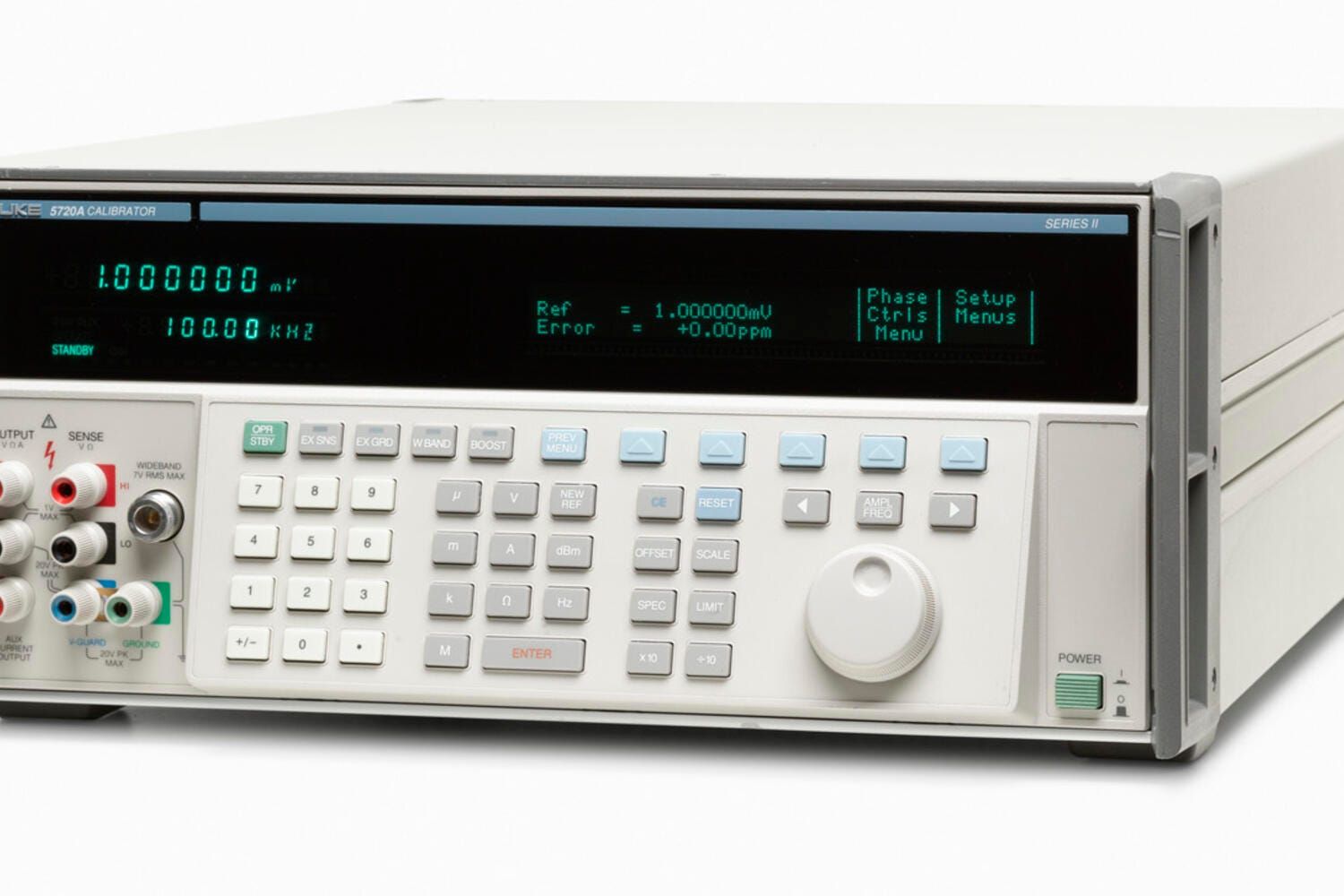

The multifunction calibrator provides precision electrical calibration for digital multimeters from 5 1/2 to 7 1/2 digits. It sources dc voltage to ±1100 V, ac voltage from 0.22 µV to 1100 V, resistance values to 100 MΩ, and dc current to ±2.2 A. AC current output spans 9 µA to 2.2 A from 10 Hz to 10 kHz, with optional amplification to 11 A using a compatible 5725A amplifier. The instrument supports IEEE-488 and RS-232 interfaces, selectable line voltages from 100 V to 240 V, and operation from 0 °C to 50 °C. Artifact calibration uses 10 V, 1 Ω, and 10 kΩ external standards to calibrate all ranges and functions.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Fluke 5700A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| DC voltage range | 0 to ±1100V |
| Best 1-year DC voltage specification | ±7.0ppm of setting |
| AC voltage range | 0.22 µV to 1100V |
| AC voltage frequency range | 10 to 1 MHzHz |
| Best 1-year AC voltage specification | ±75.0ppm of setting |
| Resistance range | 0 to 100 MΩ, 18 values in x1 and x1.9Ω |
| Best 1-year resistance specification | ±12.0ppm |
| DC current range | 0 to ±2.2; 11 with 5725AA |
| Best 1-year DC current specification | ±50ppm of setting |
| AC current range | 9 µA to 2.2; 11 with 5725AA |
| AC current frequency range | 10 to 10 kHzHz |
| Best 1-year AC current specification | ±140ppm of setting |
| Wideband AC voltage option range | 300 µV to 3.5V |
| Wideband AC voltage option frequency range | 10 to 30 MHzHz |
| Warm-up time | 2x the time since last warmed up, maximum 30 minutes |
| Interfaces | IEEE-488, RS-232, 5725A, 5205A or 5215A, 5220A, phase lock in BNC, phase reference out BNC |
| Operating temperature | 0 to 50°C |
| Storage temperature | -40 to 75°C |
| Line power frequency | 47 to 63Hz |
| Maximum power | 300VA |
| Safety | Designed to comply with UL311; IEC 348-1978; IEC 66E (CO)4; CSA 556B |
| Emi/rfi | Designed to comply with FCC Rules Part 15, Subpart J, Class B; VDE 0871, Class B |
