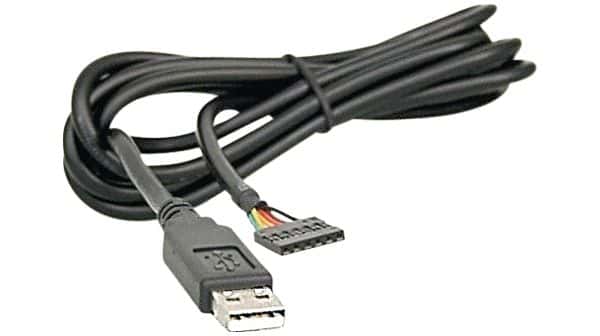

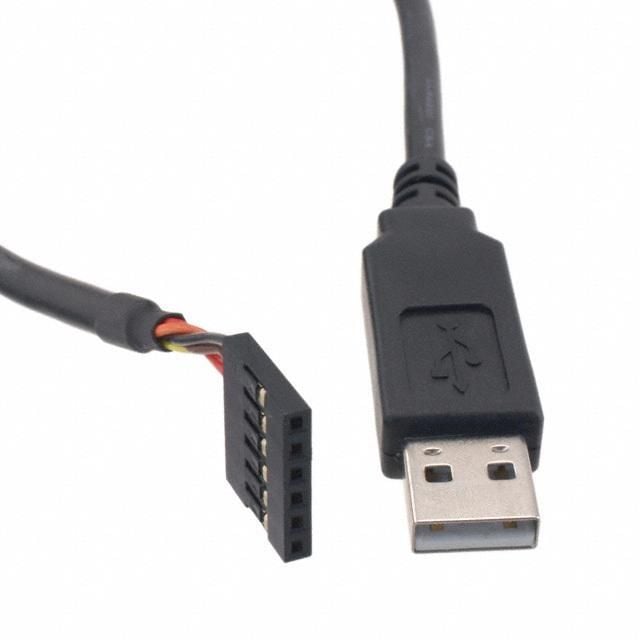

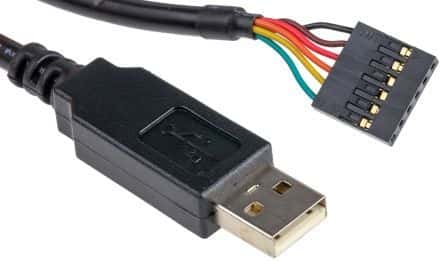

5V USB to UART serial cable with a 0.1" header, offering a 3Mbaud baud rate. Features a 6-conductor, 24AWG unshielded cable in black, 1.8m in length, with male-to-male connectors. Designed for through-hole mounting with a SIP package and a 15mA current rating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ftdi TTL-232R-5V datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Ftdi TTL-232R-5V technical specifications.
| Baud Rate | 3Mbaud |
| Package/Case | SIP |
| Color | Black |
| Connector Type A | USB |
| Current Rating | 15mA |
| Gender | Male to Male |
| Interface | UART, Serial, USB |
| Lead Free | Lead Free |
| Length | 1.8m |
| Mount | Through Hole |
| Number of Conductors | 6 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Series | USBmadeEZ-UART |
| Shielding | Unshielded |
| Voltage Rating | 5V |
| Wire/Cable Gauge | 24AWG |
| RoHS | Compliant |
