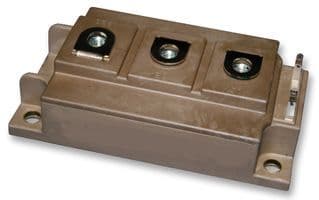

The 2MBI150S-120-50 is a high-power module from Fuji Electric with a collector emitter breakdown voltage of 1.2kV and a maximum collector current of 200A. It has a maximum operating temperature of 150°C and a maximum power dissipation of 1kW. The module is mounted using screws and has a package case type of module. It also features an isolation voltage of 2.5kV.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Fuji Electric 2MBI150S-120-50 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Module |
| Collector Emitter Breakdown Voltage | 1.2kV |
| Collector Emitter Voltage (VCEO) | 2.6V |
| Height | 30mm |
| Isolation Voltage | 2.5kV |
| Length | 108mm |
| Max Collector Current | 200A |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 1kW |
| Mount | Screw |
| Termination | Screw |
| Width | 108mm |
| RoHS | Compliant |
