FUJI ELECTRIC

2MBI150U2A-060-50

Datasheet

600V 150A Power Module, 500W, Panel Mount, 150°C

Fuji Electric

2MBI150U2A-060-50

Name: 2MBI150U2A-060-50 Fuji Electric
Brand: Fuji Electric
SKU: 2MBI150U2A-060-50

600V 150A Power Module, 500W, Panel Mount, 150°C

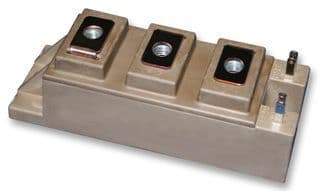

The 2MBI150U2A-060-50 is a power module from Fuji Electric with a collector emitter breakdown voltage of 600V and saturation voltage of 2.35V. It has a maximum collector current of 150A and a maximum power dissipation of 500W. The module is designed for panel mount and has a maximum operating temperature of 150°C. It also features an isolation voltage of 2.5kV and measures 30mm in height, 92mm in length, and 34mm in width.

PackageModule

MountingPanel

Power500W

Quick Jump:

Technical Specifications

Fuji Electric 2MBI150U2A-060-50 technical specifications.

General

Package/Case	Module
Collector Emitter Breakdown Voltage	600V
Collector Emitter Saturation Voltage	2.35V
Collector Emitter Voltage (VCEO)	600V
Height	30mm
Isolation Voltage	2.5kV
Length	92mm
Max Collector Current	150A
Max Operating Temperature	150°C
Max Power Dissipation	500W
Mount	Panel
Power Dissipation	500W
Reach SVHC Compliant	Unknown
Width	34mm
