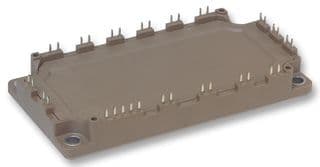

The 7MBR100U4B-120-50 is a power transistor from Fuji Electric with a collector emitter breakdown voltage of 1.2kV and a maximum collector current of 100A. It is packaged in a module format and is designed for PCB mounting. The transistor has a maximum power dissipation of 390W and can operate at temperatures up to 150°C. It is compliant with RoHS regulations.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Fuji Electric 7MBR100U4B-120-50 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Fuji Electric 7MBR100U4B-120-50 technical specifications.
| Package/Case | Module |
| Collector Emitter Breakdown Voltage | 1.2kV |
| Collector Emitter Saturation Voltage | 2.35V |
| Collector Emitter Voltage (VCEO) | 2.35V |
| Height | 17mm |
| Length | 122mm |
| Max Collector Current | 100A |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 390W |
| Mount | PCB |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Width | 62mm |
| RoHS | Compliant |
