Fuji Electric
7MBR30SA-060-50

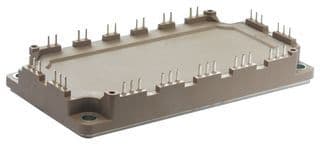

FUJI ELECTRIC 7MBR30SA-060-50 IGBT Array & Module Transistor, 7 Pack, N Channel, 30 A, 1.8 V, 120 W, 600 V, Module
PackageModule
MountingScrew
Quick Jump:
Technical Specifications
Fuji Electric 7MBR30SA-060-50 technical specifications.
General
| Package/Case | Module |
| Collector Emitter Breakdown Voltage | 600V |
| Collector Emitter Saturation Voltage | 1.8V |
| Collector Emitter Voltage (VCEO) | 600V |
| Height | 17mm |
| Length | 107.5mm |
| Max Collector Current | 30A |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 120W |
| Mount | Screw |
| Reach SVHC Compliant | Unknown |
| Width | 45mm |
Compliance
| RoHS | Compliant |
Datasheet
Fuji Electric 7MBR30SA-060-50 Datasheet
Download the complete datasheet for Fuji Electric 7MBR30SA-060-50 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
