Technical Specifications
General Instruments SMBJ24CA-E3/52 technical specifications.
General
Direction
Bidirectional
ESD Protection
No
Height
2.24mm
Length
4.57mm
Min Breakdown Voltage
26.7V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Reverse Leakage Current
1uA
Mount
Surface Mount
Packaging
Tape and Reel
Peak Pulse Current
15.4A
Peak Pulse Power
600W
Reverse Standoff Voltage
24V
Width
3.94mm
Compliance
RoHS
Unconfirmed
Datasheet
General Instruments SMBJ24CA-E3/52 Datasheet
Download the complete datasheet for General Instruments SMBJ24CA-E3/52 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

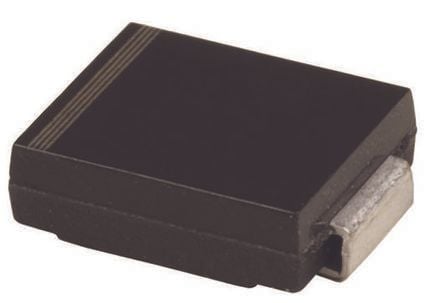

Product Images
