Grayhill
25LB22-H
Mechanical Encoder Rotary Flat 0.042N.m Straight Hexadecimal Digital Square Wave 16PPR Through Hole PC Pin
Current Rating1.5mA
MountingThrough Hole, Panel, PCB
Quick Jump:
Technical Specifications
Grayhill 25LB22-H technical specifications.
General
Actuator Type
Shaft
Built in Switch
No
Current Rating
1.5mA
Detent
Yes
Encoder Type
Mechanical
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-65°C
Mount
Through Hole, Panel, PCB
Nominal Supply Voltage (DC)
14V
Number of Channels
2
Number of Positions
16
Orientation
Vertical
Output Type
Hexadecimal
Package Quantity
1
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
25L
Termination
PC Pins
Type
Mechanical
Compliance
RoHS
Compliant
Datasheet
Grayhill 25LB22-H Datasheet
Download the complete datasheet for Grayhill 25LB22-H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

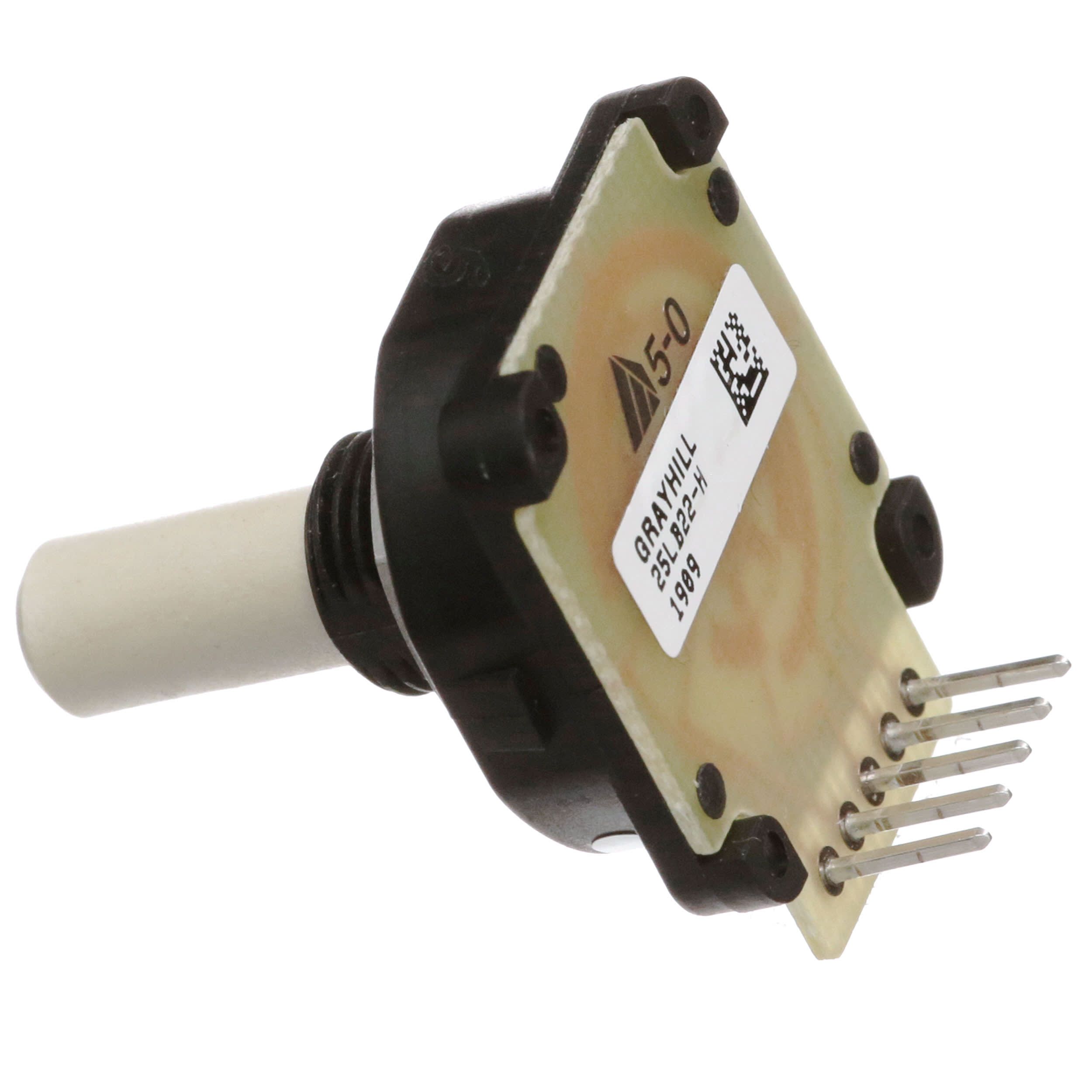

Product Images
