Technical Specifications
Grayhill 61C22-01-04-01 technical specifications.
General
Built in Switch
No
Contact Plating
Tin, Lead
Detent
Yes
Encoder Type
Optical
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole, Panel, PCB
Orientation
Vertical
Output Type
Quadrature, Incremental
Package Quantity
1
RoHS Compliant
No
Series
61C
Termination
PC Pin
Compliance
RoHS
Not Compliant
Datasheet
Grayhill 61C22-01-04-01 Datasheet
Download the complete datasheet for Grayhill 61C22-01-04-01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

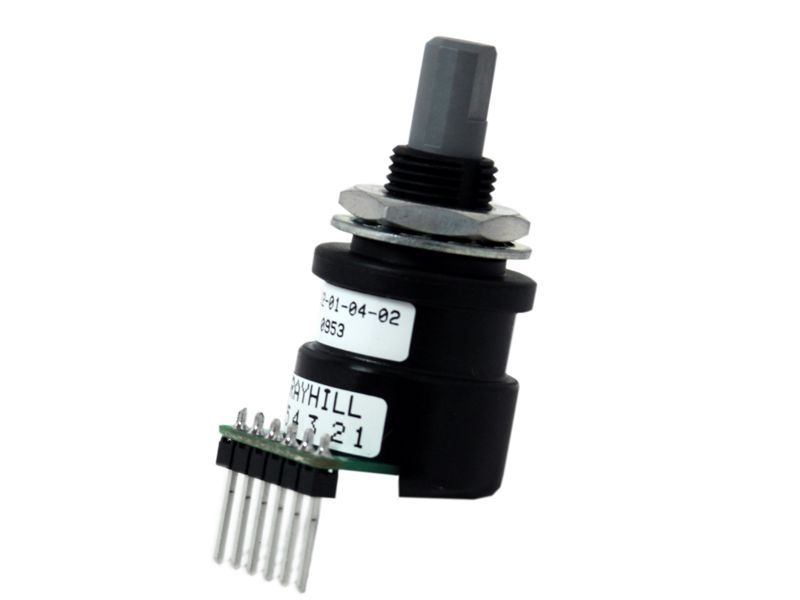

Product Images
