Technical Specifications
Grayhill 62C1111-02-060C technical specifications.
General
Actuator Type
Concentric
Built in Switch
Yes
Contact Plating
Tin
Current Rating
50mA
Detent
Yes
Encoder Type
Optical
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Panel
Number of Channels
2
Operating Supply Voltage
5V
Orientation
Vertical
Output Type
Quadrature, Incremental
Package Quantity
1
RoHS Compliant
Yes
Series
62C
Termination
Cable
Compliance
RoHS
Compliant
Datasheet
Grayhill 62C1111-02-060C Datasheet
Download the complete datasheet for Grayhill 62C1111-02-060C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

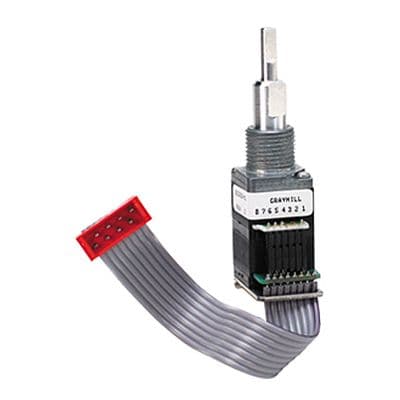

Product Images
