Grayhill
62C2222-01-120S
62C2222-01-120S Optical Encoder, Absolute & Incremental, Panel Mount, Vertical Orientation
This optical encoder from Grayhill features a concentric actuator type and a built-in detent. The encoder is RoHS compliant and has a brass and tin contact plating. It is available in a single package quantity and has cable leads for termination.
MountingPanel
Quick Jump:
Technical Specifications
Grayhill 62C2222-01-120S technical specifications.
General
| Actuator Type | Concentric |
| Built in Switch | No |
| Contact Plating | Brass, Tin |
| Detent | Yes |
| Encoder Type | Optical |
| Mount | Panel |
| Orientation | Vertical |
| Output Type | Quadrature, Incremental |
| Package Quantity | 1 |
| RoHS Compliant | Yes |
| Series | 62C |
| Termination | Cable Leads |
Compliance
| RoHS | Compliant |
Datasheet
Grayhill 62C2222-01-120S Datasheet
Download the complete datasheet for Grayhill 62C2222-01-120S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

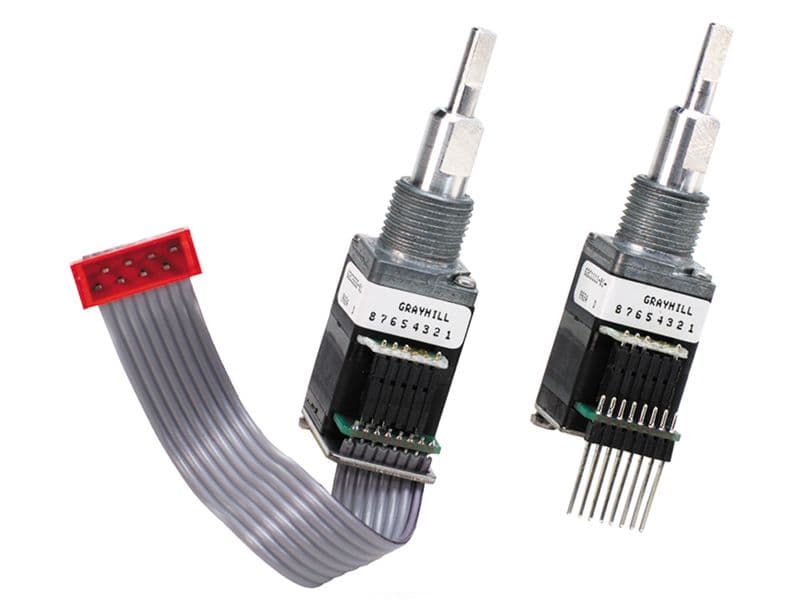

Product Images
