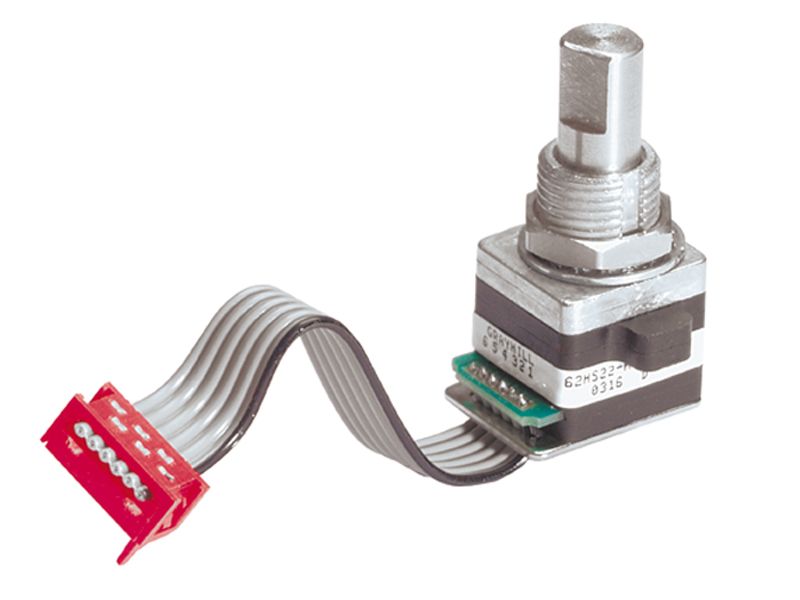

The 62HS22-H9-040S is a panel mount optical encoder with a concentric actuator type, featuring a built-in switch and detent. It operates over a temperature range of -40°C to 85°C and is compliant with RoHS regulations. The encoder is available in a single package quantity and is terminated with cable leads. It provides quadrature and incremental output types and is designed for use in vertical orientation.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 62HS22-H9-040S datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Type | Concentric |
| Built in Switch | Yes |
| Detent | Yes |
| Encoder Type | Optical |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Panel |
| Orientation | Vertical |
| Output Type | Quadrature, Incremental |
| Package Quantity | 1 |
| RoHS Compliant | Yes |
| Series | 62HS |
| Termination | Cable Leads |
| RoHS | Compliant |
