MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Grayhill 62P22-L4 technical specifications.
General
Built in Switch
Yes
Contact Plating
Brass, Tin
Detent
Yes
Encoder Type
Optical
Index Angle
22°
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Through Hole, PCB
Number of Channels
2
Number of Positions
16
Orientation
Vertical
Output Type
Quadrature, Incremental
Package Quantity
1
RoHS Compliant
Yes
Series
62P
Termination
PC Pin
Compliance
RoHS
Compliant
Datasheet
Grayhill 62P22-L4 Datasheet
Download the complete datasheet for Grayhill 62P22-L4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

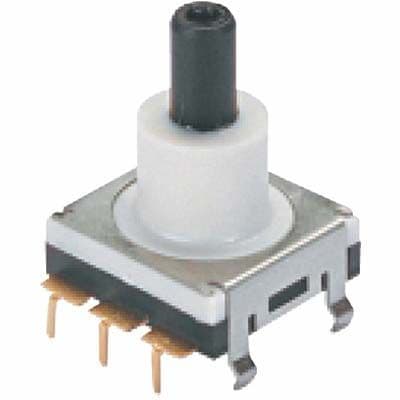

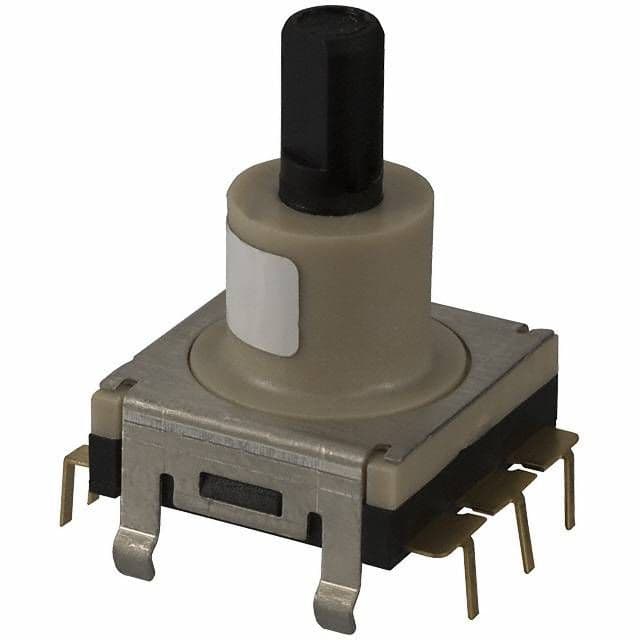

Product Images
