Technical Specifications
Grayhill 62S11-M5-020C technical specifications.
General
Built in Switch
Yes
Contact Plating
Tin
Current Rating
25mA
Detent
Yes
Encoder Type
Optical
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5V
Min Supply Voltage
4.75V
Mount
Panel
Nominal Supply Voltage (DC)
5V
Number of Channels
2
Number of Positions
32
Orientation
Vertical
Output Type
Quadrature, Incremental
Package Quantity
1
Packaging
Tray
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
62S
Termination
Cable
Compliance
RoHS
Compliant
Datasheet
Grayhill 62S11-M5-020C Datasheet
Download the complete datasheet for Grayhill 62S11-M5-020C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

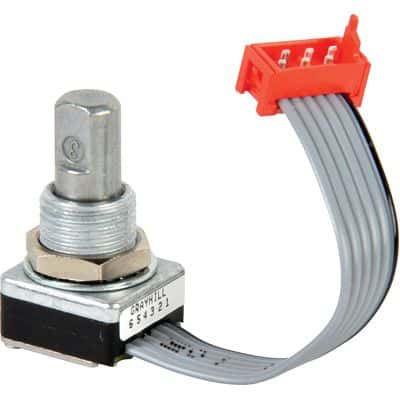

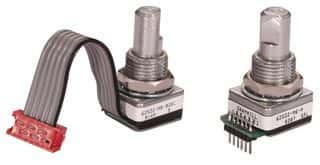

Product Images
