70G-IDC5S

Datasheet

Grayhill

70G-IDC5S

Name: 70G-IDC5S Grayhill
Brand: Grayhill
SKU: 70G-IDC5S

DC Input Module, 25V Nominal, 5mA Input, 50V Rated

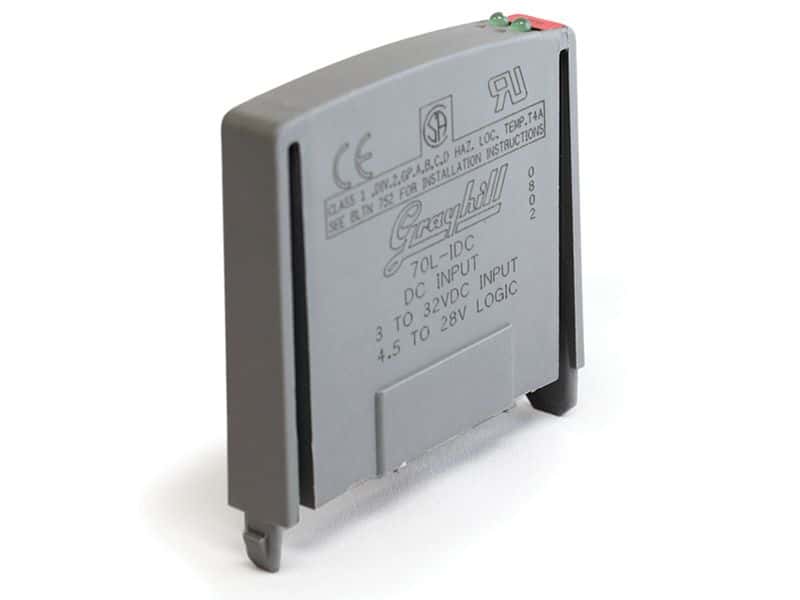

General purpose DC input module featuring a single channel with SPST configuration. Operates with a nominal input voltage of 25V DC, requiring 5mA input current and a 1.8kΩ input resistance, with a minimum turn-on voltage of 3V and a maximum of 32V. Delivers 41mA output current with a 50V voltage rating. Designed for PCB mounting via through-hole termination, this white module measures 55.9mm in height, 58.42mm in width, and 11.68mm in depth, with operating temperatures ranging from -40°C to 60°C. Approvals include UL, CSA, CE, and TUV.

PackageModule

Voltage Rating50V

Current Rating50mA

MountingPCB, Through Hole

Quick Jump:

Chat with Datasheet

Technical Specifications

Grayhill 70G-IDC5S technical specifications.

General

Approvals	UL, CSA, CE, TUV
Package/Case	Module
Color	White
Current Rating	50mA
Depth	0.46inch
Height	55.9mm
Input Current	5mA
Input Resistance	1.8kR
Input Type	DC
Length	1.9inch
Max Input Voltage	32V
Min Input Voltage	3V
Max Operating Temperature	60°C
Min Operating Temperature	-40°C
Mount	PCB, Through Hole
Nominal Input Voltage (DC)	25V
Number of Channels	1
Output Current	41mA
Packaging	Bulk
Reach SVHC Compliant	No
Series	70
Termination	PC Pins
Throw Configuration	SPST
Turn-Off Delay Time	3ms
Turn-On Delay Time	3ms
Voltage Rating	50V
DC Rated Voltage	50V
Width	2.2inch
