Technical Specifications
Grayhill 84LSN-BB2-016-N technical specifications.
General
Depth
78.74mm
Height
9.07mm
Illumination Type
Non-Illuminated
Length
78.74mm
Max Operating Temperature
85°C
Mechanical Life
3000000Cycles
Min Operating Temperature
-55°C
Max Voltage Rating (DC)
24V
Mount
Panel, Front
Operating Force
5.56N
Packaging
Bulk
Radiation Hardening
No
Ratings
IP67, Waterproof, Dust Tight
RoHS Compliant
Yes
Series
84LS
Compliance
RoHS
Compliant
Datasheet
Grayhill 84LSN-BB2-016-N Datasheet
Download the complete datasheet for Grayhill 84LSN-BB2-016-N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

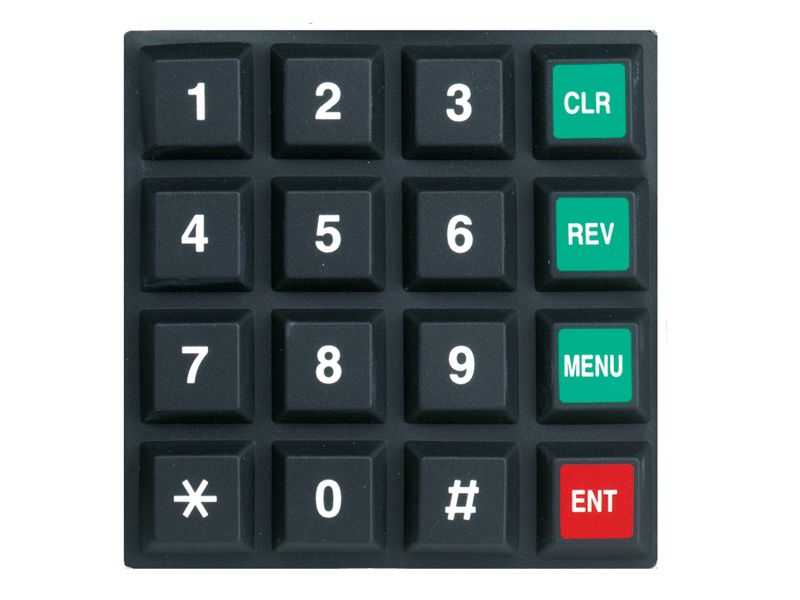

Product Images
