This 16-key keypad features a silicone actuator and bronze contacts, rated for 5mA at 12VDC with a mechanical life of 1,000,000 cycles. Designed for panel mounting, it operates within a temperature range of -30°C to 80°C and requires an operating force of 1.72N. The unit is non-illuminated, IP40 rated, and RoHS compliant, with dimensions of 63.5mm x 68.58mm x 6.99mm.
Package100
Storage4inch
Current Rating5mA
MountingPanel, Front
Quick Jump:
Technical Specifications
Grayhill 96BB2-056-F technical specifications.
General
| Actuator Material | Rubber, Silicone |
| Package/Case | 100 |
| Color | White |
| Contact Current Rating | 5mA |
| Contact Material | Bronze |
| Current Rating | 5mA |
| Depth | 68.58mm |
| Height | 6.99mm |
| Housing Color | Black |
| Illumination Type | Non-Illuminated |
| Lead Free | Lead Free |
| Length | 63.5mm |
| Material | Silicone |
| Max Current Rating | 5mA |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (DC) | 12V |
| Mechanical Life | 1000000Cycles |
| Mount | Panel, Front |
| Operating Force | 1.72N |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | IP40 |
| RoHS Compliant | Yes |
| Series | 96 |
| Size | 4inch |
| DC Rated Voltage | 12V |
| Width | 63.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Grayhill 96BB2-056-F Datasheet
Download the complete datasheet for Grayhill 96BB2-056-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

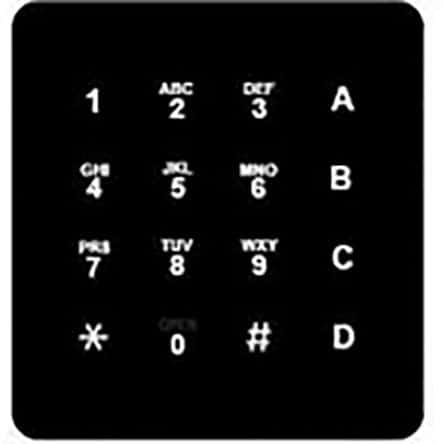

Product Images
