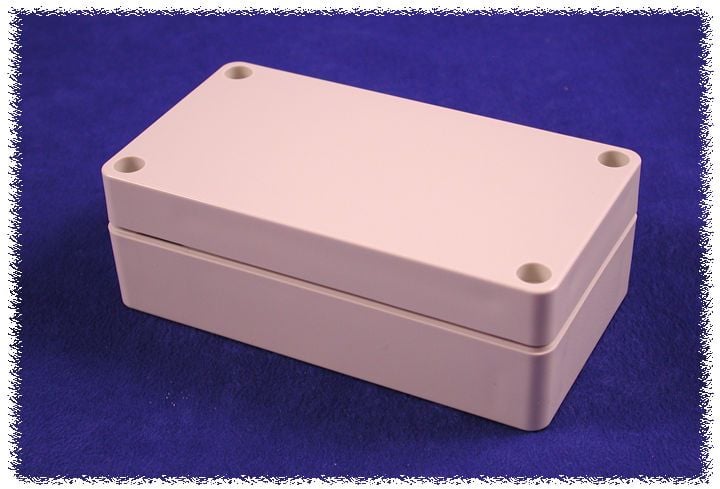

ABS plastic enclosure, grey, featuring a 120mm length, 60mm height, and 90mm depth. Rated IP66 and UL94 HB for durability and safety. Approvals include UL and NEMA. Maximum operating temperature of 120°C, minimum of -40°C. Designed for wall mounting.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Hammond 1554FGY datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, NEMA |
| Body Material | Steel, ABS |
| Package/Case | 120 |
| Color | Grey |
| Depth | 2.4inch |
| Flammability Rating | UL94 HB |
| Height | 60mm |
| Housing Color | Grey |
| Lead Free | Lead Free |
| Length | 120mm |
| Material | ABS, Plastic, ACRYLONITRILE BUTADIENE STYRENE |
| Max Operating Temperature | 120°C |
| Min Operating Temperature | -40°C |
| Mount | Wall |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP66 |
| Reach SVHC Compliant | No |
| Series | 1554 |
| Weight | 13.051366oz |
| Width | 3.5inch |
| RoHS | Compliant |
Download the complete datasheet for Hammond 1554FGY to view detailed technical specifications.
