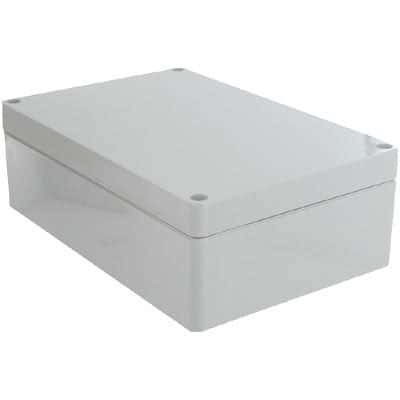

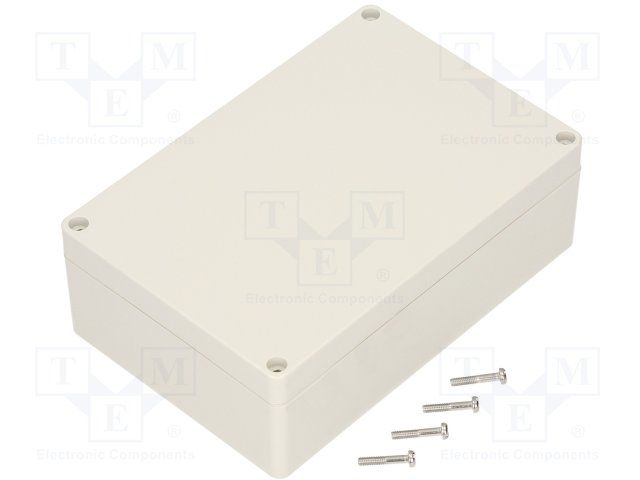

ABS plastic enclosure, grey, 180mm length, 120mm width, 60mm height, 2.4-inch depth. Features IP66 and NEMA ratings, UL94 HB flammability. Suitable for wall mounting, operating temperature range of -40°C to 120°C. Constructed from ABS and steel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Hammond 1554HGY datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, NEMA |
| Body Material | Steel, ABS |
| Package/Case | 120 |
| Color | Grey |
| Depth | 2.4inch |
| Flammability Rating | UL94 HB |
| Height | 60mm |
| Housing Color | Grey |
| Length | 180mm |
| Material | ABS, Plastic, ACRYLONITRILE BUTADIENE STYRENE |
| Max Operating Temperature | 120°C |
| Min Operating Temperature | -40°C |
| Mount | Wall |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP66 |
| Reach SVHC Compliant | No |
| Series | 1554 |
| Weight | 1.323lb |
| Width | 4.7inch |
| RoHS | Compliant |
Download the complete datasheet for Hammond 1554HGY to view detailed technical specifications.
