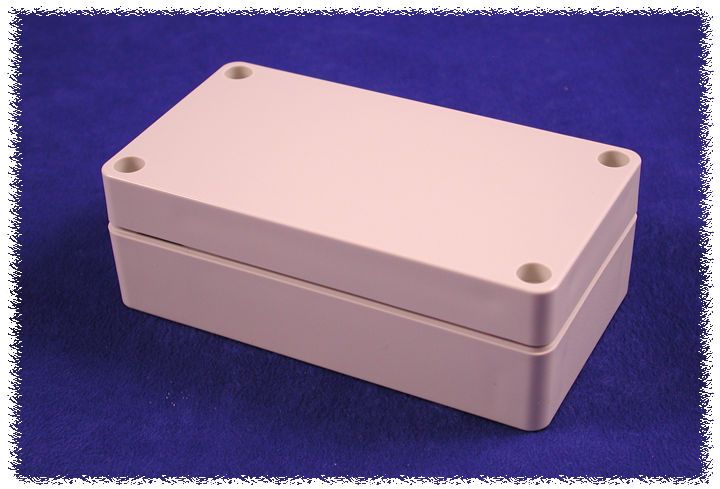

General purpose watertight enclosure, constructed from durable polycarbonate with a grey housing color. Features UL and NEMA approvals, an IP66 rating, and a UL94 5VA flammability rating. Designed for wall mounting, this enclosure offers a temperature range of -40°C to 120°C. Dimensions include a length of 9.449 inches, width of 6.3 inches, and depth of 3.5 inches, with a material thickness of 0.128 inches.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Hammond 1554V2GY datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, NEMA |
| Body Material | Polycarbonate |
| Color | Grey |
| Depth | 3.5inch |
| Flammability Rating | UL94 5VA |
| Height | 3.543inch |
| Housing Color | Grey |
| Length | 9.449inch |
| Material | Plastic, Polycarbonate, PC |
| Max Operating Temperature | 120°C |
| Min Operating Temperature | -40°C |
| Mount | Wall |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP66 |
| Reach SVHC Compliant | No |
| Series | 1554 |
| Thickness | 0.128inch |
| Weight | 3lb |
| Width | 6.3inch |
| RoHS | Compliant |
Download the complete datasheet for Hammond 1554V2GY to view detailed technical specifications.
