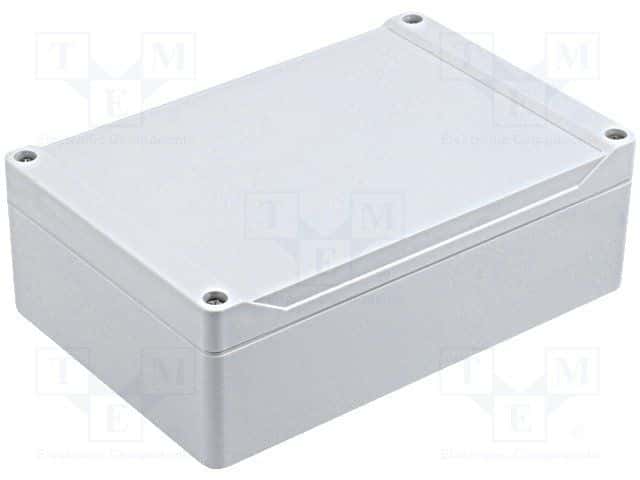

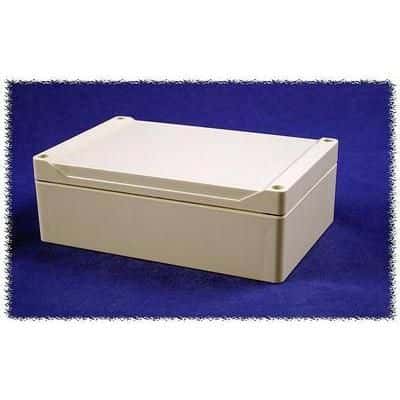

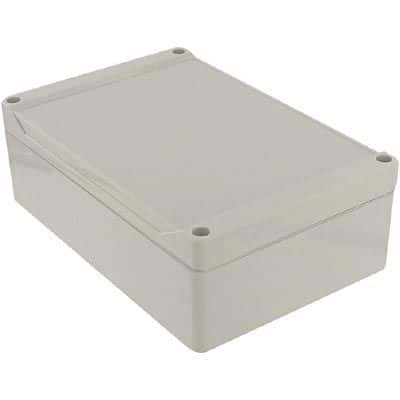

ABS plastic enclosure, grey, featuring IP66 and IP68 ratings for robust environmental protection. Designed for wall mounting, this general-purpose enclosure measures 180mm (7.09 inches) in length, 120mm (4.72 inches) in width, and 60mm (2.4 inches) in depth. Constructed from durable ABS material, it offers a flammability rating of UL94 HB and operates within a temperature range of -40°C to 120°C. Approvals include UL and NEMA standards.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Hammond 1555HGY datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, NEMA |
| Body Color | Grey |
| Body Material | ABS |
| Package/Case | 120 |
| Color | Grey |
| Depth | 2.4inch |
| Flammability Rating | UL94 HB |
| Height | 60mm |
| Housing Color | Grey |
| Lead Free | Lead Free |
| Length | 180mm |
| Material | ABS, Plastic, ACRYLONITRILE BUTADIENE STYRENE |
| Max Operating Temperature | 120°C |
| Min Operating Temperature | -40°C |
| Mount | Wall |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP66, IP68 |
| Reach SVHC Compliant | No |
| Series | 1555 |
| Weight | 1.323lb |
| Width | 4.7inch |
| RoHS | Compliant |
Download the complete datasheet for Hammond 1555HGY to view detailed technical specifications.
