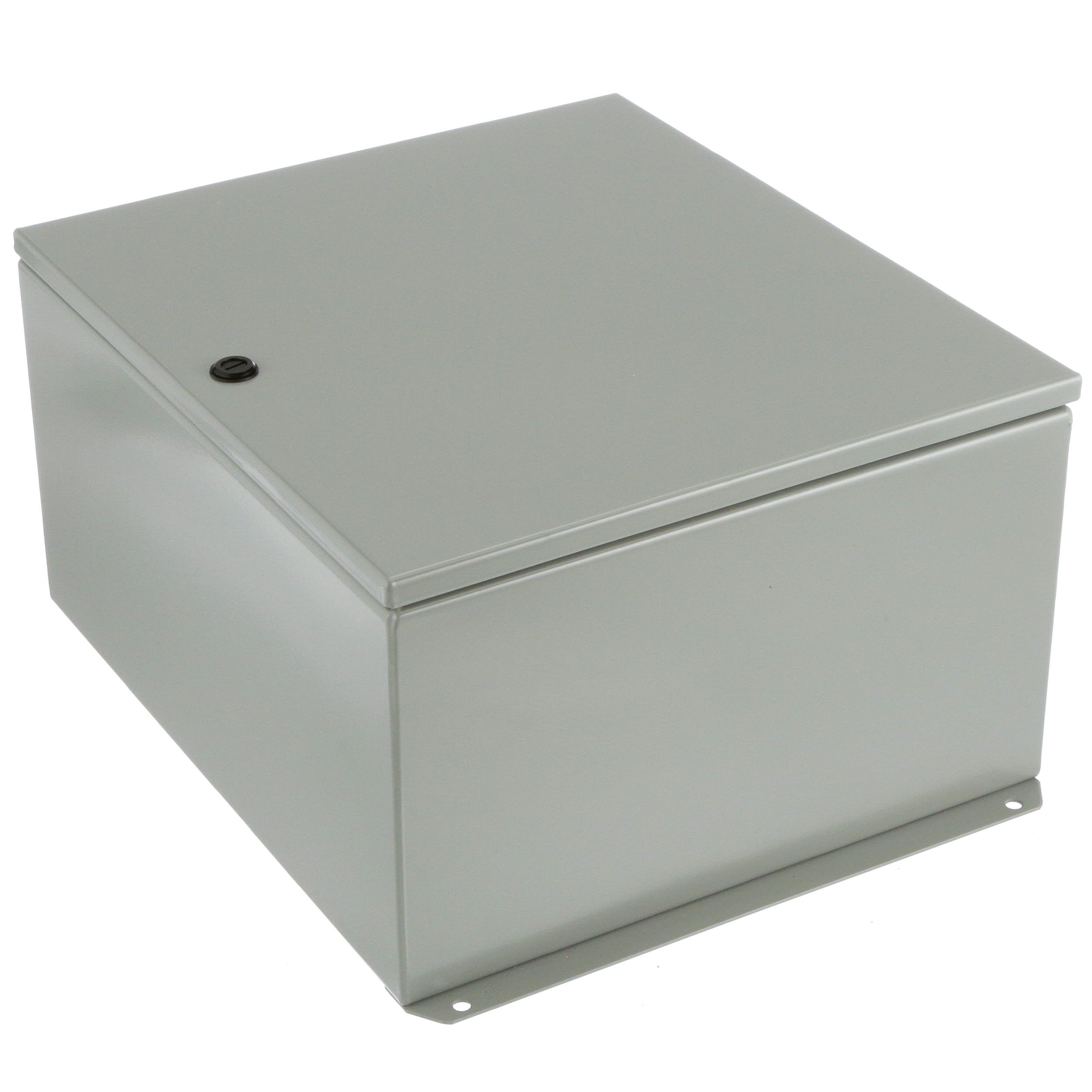

General purpose electrical enclosure, 16" L x 8" H x 16.9" W (425mm), constructed from durable steel for robust protection. Features a single door design and a grey housing color. Rated IP66 for superior dust and water resistance, meeting UL, CSA, and IEC approvals. Panel mountable and RoHS compliant.
MountingPanel
Quick Jump:
Technical Specifications
Hammond EJ16148 technical specifications.
General
| Approvals | UL, CSA, IEC |
| Body Color | Grey |
| Color | Grey |
| Height | 8inch |
| Housing Color | Grey |
| Length | 16inch |
| Material | Steel, Metal |
| Mount | Panel |
| Package Quantity | 1 |
| Packaging | Box |
| Ratings | IP66 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Eclipse Junior |
| Weight | 22lb |
| Width | 425mm |
Compliance
| RoHS | Compliant |
Datasheet
Hammond EJ16148 Datasheet
Download the complete datasheet for Hammond EJ16148 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
