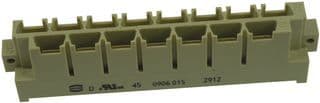

15-position, 2-row male receptacle with a 10.16mm pitch, designed for board-to-board applications. Features straight orientation, solder termination, and a current rating of 15A. Constructed with copper alloy contacts plated in silver, and glass insulation. Rated for 500V, 15A, and 500 mating cycles, with a temperature range of -55°C to 125°C. Compliant with RoHS and UL94 V-0 flammability rating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Harting 09060152912 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Harting 09060152912 technical specifications.
| Package/Case | 015 |
| Contact Material | Copper Alloy, Silver |
| Contact Plating | Silver |
| Current Rating | 15A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Insulation Material | Glass |
| Length | 93.85mm |
| Mating Cycles | 500 |
| Max Current Rating | 15A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Panel |
| Number of Contacts | 15 |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 20 |
| Packaging | Bulk |
| Pitch | 10.16mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | DIN 41612 |
| Termination | Faston |
| Test Voltage | 3.1kV |
| Voltage Rating | 500V |
| RoHS | Compliant |
