Female rectangular connector with a module package, featuring a straight orientation and screw termination. This component offers a 40A current rating and a 600V voltage rating, with copper alloy contacts plated in silver. It operates within a temperature range of -40°C to 125°C and boasts a UL94 V-0 flammability rating. The connector has 2 positions and 2 contacts, with a grey color and a depth of 40.6mm.
PackageModule
Voltage Rating600V
Current Rating40A
Quick Jump:
Technical Specifications
Harting 09140022702 technical specifications.
General
Package/Case
Module
Color
Grey
Contact Material
Copper Alloy, Copper
Contact Plating
Silver
Current Rating
40A
Depth
40.6mm
Flammability Rating
UL94 V-0
Gender
Female
Length
34.3mm
Max Current Rating
40A
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Number of Contacts
2
Number of Ports
1
Number of Positions
2
Number of Rows
1
Orientation
Straight
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Han Modular
Termination
Screw
Voltage Rating
600V
Compliance
RoHS
Compliant
Datasheet
Harting 09140022702 Datasheet
Download the complete datasheet for Harting 09140022702 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

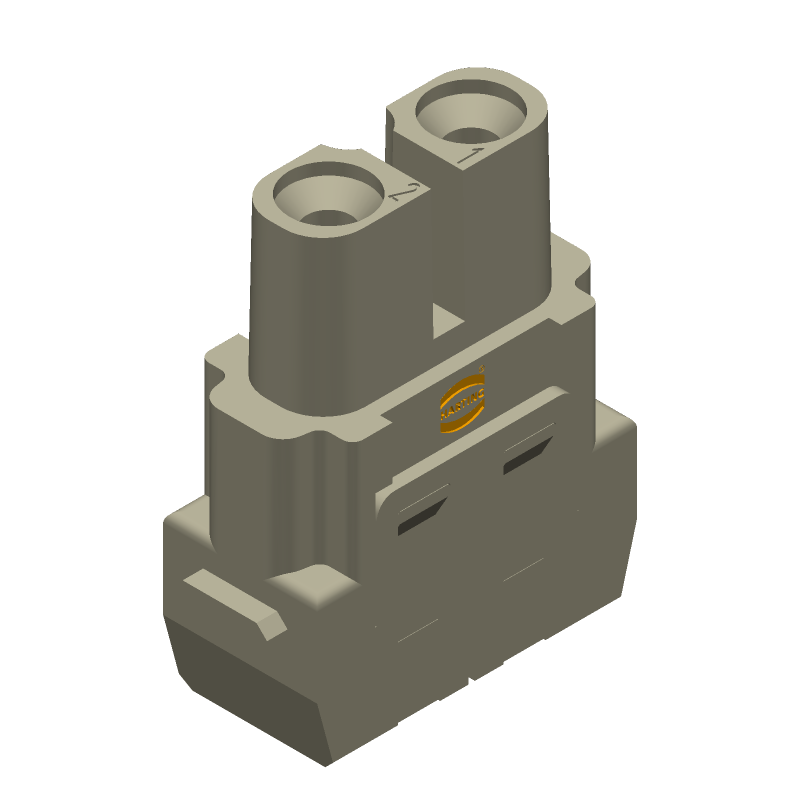

Product Images
