50-position, 2-row right-angle IDC socket receptacle with a 2.54mm lead pitch. Features brass contacts with gold plating, rated for 1A contact current and 2A overall current, with a 350V AC/DC voltage rating. Designed for free-hanging, cable mounting of ribbon wire, accommodating 26-28AWG wire gauges. Operates within a -40°C to 105°C temperature range and offers 100 mating cycles. UL94 V-0 flammability rating and RoHS compliant.
Current Rating2A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Harting 09185507803 technical specifications.
General
| Color | Grey |
| Contact Current Rating | 1A |
| Contact Gender | Female |
| Contact Material | Brass |
| Contact Plating | Gold |
| Contact Type | Female Socket |
| Current Rating | 2A |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Lead Pitch | 2.54mm |
| Mating Cycles | 100 |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 50 |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Package Quantity | 50 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.1inch |
| Series | SEK |
| Termination | IDC |
| Voltage Rating (AC) | 350V |
| DC Rated Voltage | 350V |
| Wire Gauge (Max) | 28AWG |
| Wire Gauge (Min) | 26AWG |
| Wire/Cable Type | Ribbon |
Compliance
| RoHS | Compliant |
Datasheet
Harting 09185507803 Datasheet
Download the complete datasheet for Harting 09185507803 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

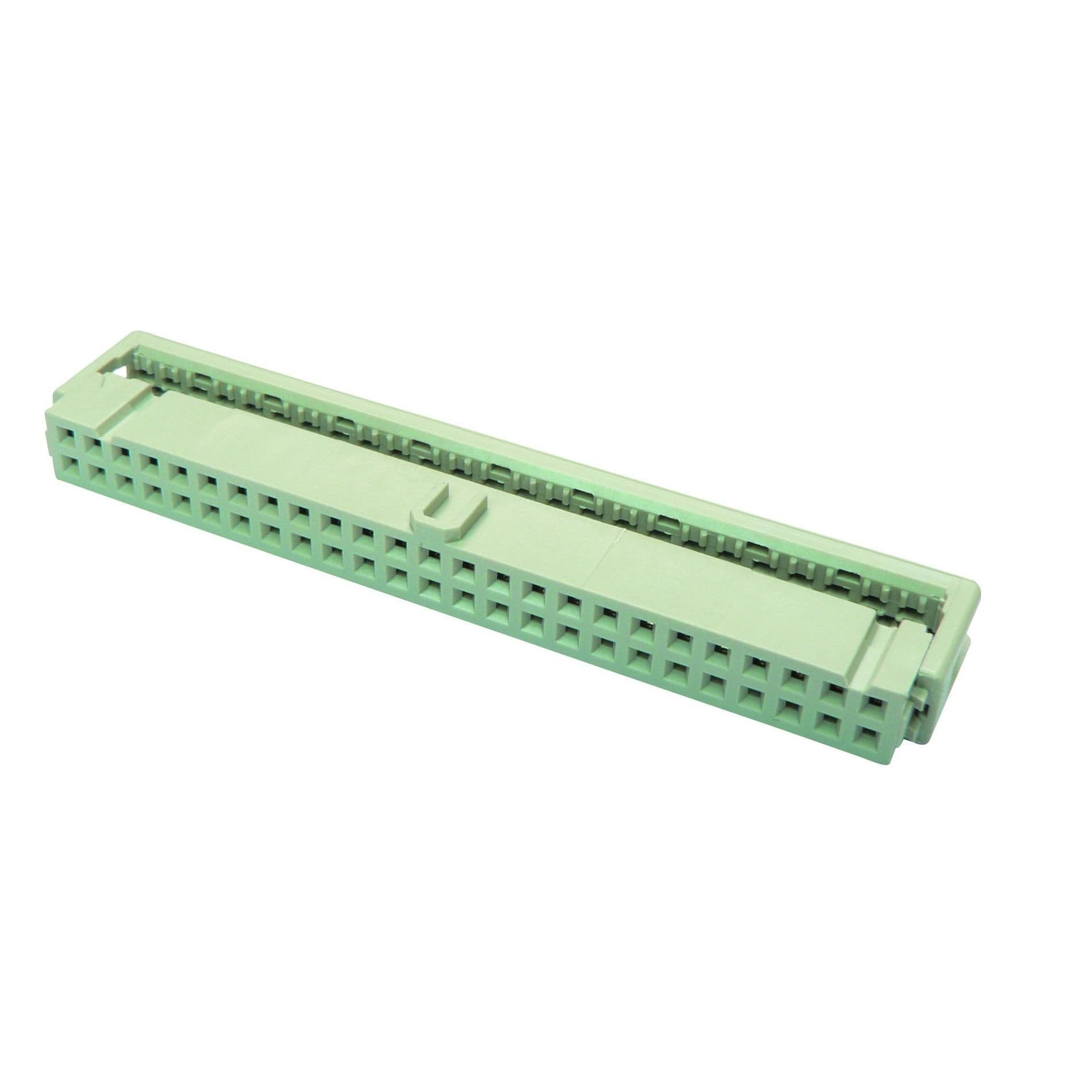

Product Images
