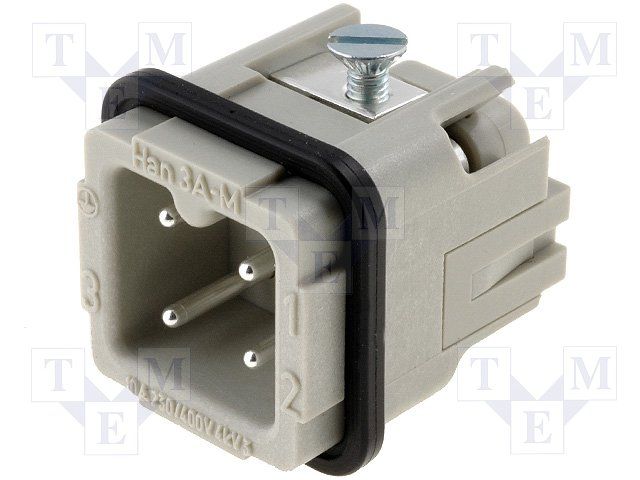

This male rectangular connector features a straight, 3-position, 2-row configuration with screw termination. Constructed from grey polycarbonate, it utilizes copper alloy contacts with silver plating, rated for 10A and a maximum of 3A, with a voltage rating of 600V (250V AC, 230V working). Operating within a temperature range of -40°C to 125°C, it boasts an IP65 rating and UL94 V-0 flammability. Suitable for wire gauges between 18AWG and 14AWG, this component offers a 1.5kV test voltage.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Harting 09200032611 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | Grey |
| Contact Gender | Male |
| Contact Material | Copper Alloy |
| Contact Plating | Silver |
| Current Rating | 10A |
| Depth | 27mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Material | Polycarbonate |
| Max Current Rating | 3A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Number of Contacts | 3 |
| Number of Poles | 3 |
| Number of Ports | 1 |
| Number of Positions | 3 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Bulk |
| Ratings | IP65 |
| Reach SVHC Compliant | No |
| Series | Han® A |
| Termination | Screw |
| Test Voltage | 1.5kV |
| Voltage Rating | 600V |
| Voltage Rating (AC) | 250V |
| Wire Gauge (Max) | 14AWG |
| Wire Gauge (Min) | 18AWG |
| Wire/Cable Gauge | 14AWG |
| Working Voltage | 230V |
| RoHS | Compliant |
