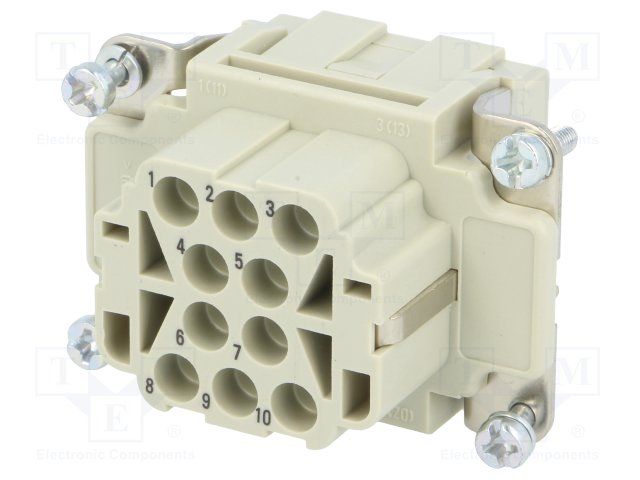

10-contact, female, straight rectangular connector with a grey housing. Features silver-plated copper alloy contacts and a crimp termination. Rated for 16A current and 500V voltage, operating between -40°C and 125°C. Designed for wire gauges from 20AWG to 12AWG, with UL94 V-0 flammability rating.
Voltage Rating500V
Current Rating16A
Quick Jump:
Technical Specifications
Harting 09320103101 technical specifications.
General
Color
Grey
Contact Gender
Female
Contact Material
Copper Alloy
Contact Plating
Silver
Contact Type
Han®
Current Rating
16A
Depth
36.2mm
Flammability Rating
UL94 V-0
Gender
Female
Length
51mm
Max Current Rating
16A
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Number of Contacts
10
Number of Rows
4
Orientation
Straight
Package Quantity
10
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Han EE
Termination
Crimp
Voltage Rating
500V
Voltage Rating (AC)
500V
Wire Gauge (Max)
12AWG
Wire Gauge (Min)
20AWG
Working Voltage
500V
Compliance
RoHS
Compliant
Datasheet
Harting 09320103101 Datasheet
Download the complete datasheet for Harting 09320103101 to view detailed technical specifications.
