This 8-position combination rectangular connector features a voltage rating of 50V and a current rating of 10A. It has a maximum operating temperature of 125°C and a minimum operating temperature of -40°C. The connector is made of copper alloy with a silver plating and is RoHS compliant. It is packaged in bulk and has a flammability rating of UL94 V-0.
Voltage Rating50V
Current Rating10A
Quick Jump:
Technical Specifications
Harting 09360082632 technical specifications.
General
| Color | Grey |
| Contact Material | Copper Alloy |
| Contact Plating | Silver |
| Current Rating | 10A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Orientation | Straight |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Han D |
| Voltage Rating | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Harting 09360082632 Datasheet
Download the complete datasheet for Harting 09360082632 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

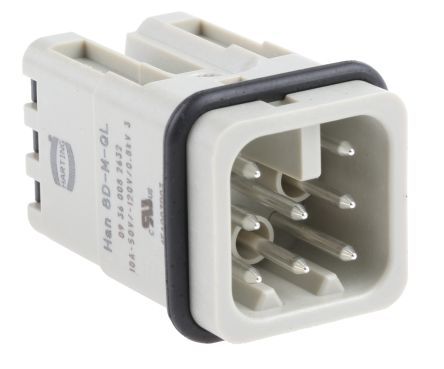

Product Images
