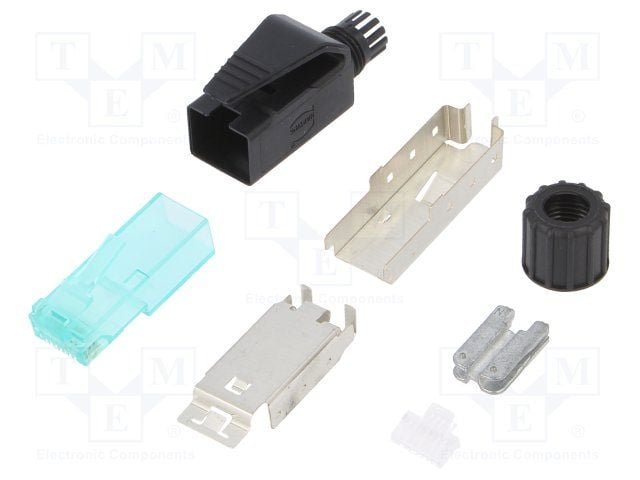

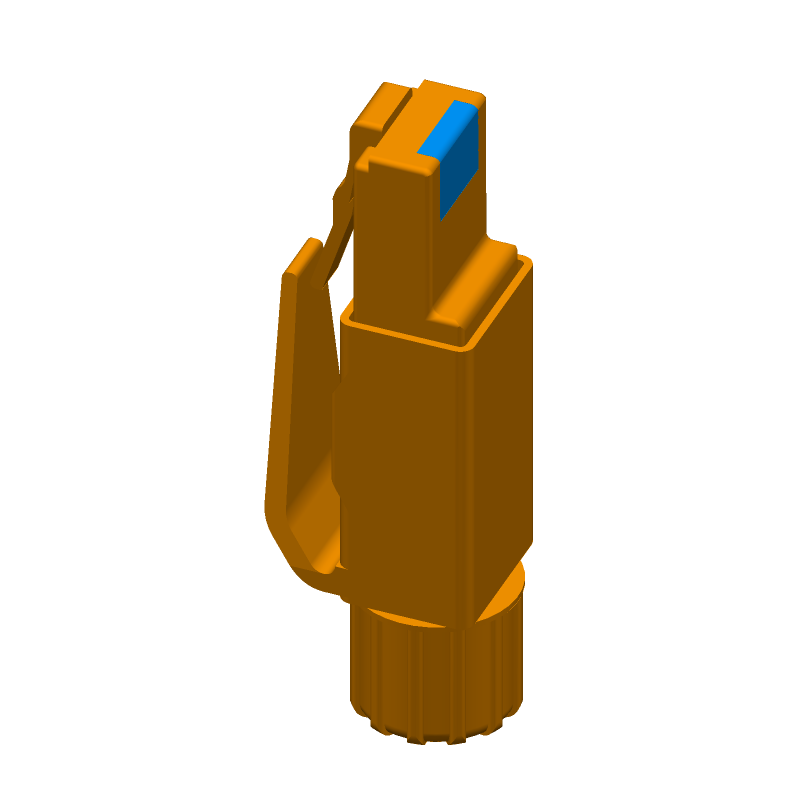

8-position, 8-contact shielded modular connector for telecom and datacom applications. Features a straight, female wire terminal plug with IDC termination, supporting 24-28 AWG round wire. Offers a 1.5A current rating and 125V voltage rating, with a mating cycle of 750. Operates within a -40°C to 70°C temperature range and boasts an IP20 rating. Constructed with copper contacts and a UL94 V-0 flammability rating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Harting 09451511520 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | Blue, Clear, Black |
| Contact Material | Copper |
| Current Rating | 1.5A |
| Depth | 52.6mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Length | 11.3mm |
| Mating Cycles | 750 |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Number of Contacts | 8 |
| Number of Ports | 1 |
| Number of Positions | 8 |
| Orientation | Straight |
| Packaging | Bulk |
| Ratings | IP20 |
| RoHS Compliant | Yes |
| Series | RJ Industrial® |
| Shielding | Shielded |
| Termination | IDC |
| Voltage Rating | 125V |
| Voltage Rating (AC) | 125V |
| Weight | 1.091729oz |
| Width | 13.97mm |
| Wire Gauge (Max) | 28AWG |
| Wire Gauge (Min) | 24AWG |
| Wire/Cable Type | Round |
| RoHS | Compliant |
