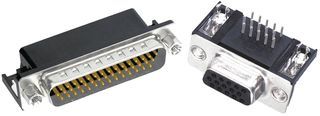

15-way female D-subminiature connector with a right-angle orientation and 2.29mm pitch. Features copper alloy contacts with gold plating for signal applications, a metal body and shell (steel with tin plating), and PBT dielectric. Rated for 2A current and 50 mating cycles, with a temperature range of -40°C to 85°C. Through-hole mounting with solder termination, UL94 V-0 flammability rating, and RoHS compliance.
PackageMetal
Current Rating2A
MountingThrough Hole
Quick Jump:
Technical Specifications
Harting 09561527612 technical specifications.
General
| Body Material | Metal |
| Package/Case | Metal |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Type | Signal |
| Current Rating | 2A |
| Depth | 12.5mm |
| Dielectric Material | PBT |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Length | 30.9mm |
| Material | Metal |
| Mating Cycles | 50 |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Contacts | 15 |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Orientation | Right Angle |
| Package Quantity | 20 |
| Packaging | Bulk |
| Pitch | 2.29mm |
| Plating | Tin |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Shell Material | Steel |
| Shell Plating | Tin |
| Termination | Solder |
| Width | 23.95mm |
Compliance
| RoHS | Compliant |
