25-way, 2-row D-subminiature plug connector with straight PCB mounting. Features copper alloy contacts with gold plating over nickel, rated for 6.5A current and 250V working voltage. Steel body with tin plating ensures durability, and it supports 250 mating cycles. Operating temperature range is -55°C to 125°C, with a solder termination and 2.76mm pitch. Flammability rating is UL94 V-0.
Voltage Rating250V
Current Rating6.5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Harting 09653616712 technical specifications.
General
| Body Material | Steel, Metal |
| Body Plating | Tin |
| Contact Material | Copper Alloy, Nickel, Gold |
| Contact Plating | Gold |
| Contact Type | Signal |
| Current Rating | 6.5A |
| Depth | 12.5mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Length | 53.2mm |
| Material | Steel |
| Mating Cycles | 250 |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 25 |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Tray |
| Pitch | 2.76mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | Solder |
| Test Voltage | 1kV |
| Working Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Harting 09653616712 Datasheet
Download the complete datasheet for Harting 09653616712 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

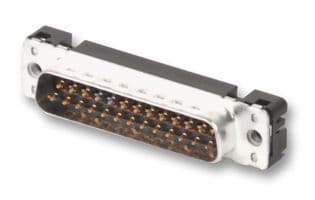

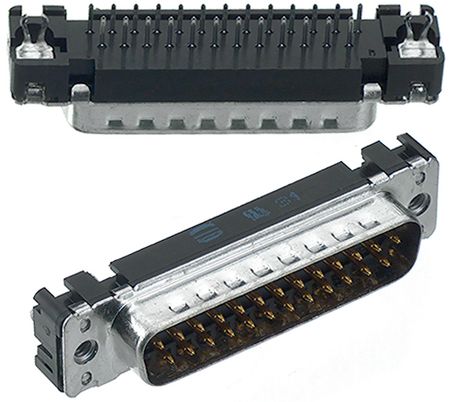

Product Images
