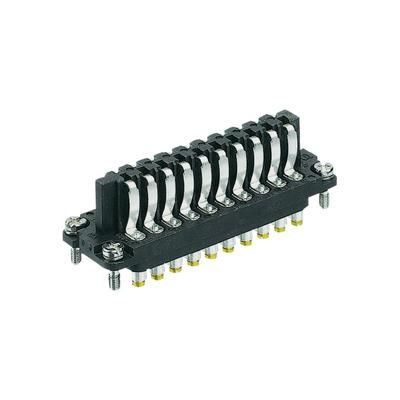

20-position, 2-row straight female rectangular connector with silver-plated copper alloy contacts. Rated for 10A current and 50V voltage (25V AC), with a wire/cable gauge of 16AWG. Features a black housing with UL94 HB flammability rating and screw termination. Operates within a temperature range of -40°C to 100°C.
Voltage Rating50V
Current Rating10A
Quick Jump:
Technical Specifications
Harting 09700202817 technical specifications.
General
| Color | Black |
| Contact Material | Copper Alloy, Silver |
| Contact Plating | Silver |
| Current Rating | 10A |
| Flammability Rating | UL94 HB |
| Gender | Female |
| Lead Free | Lead Free |
| Length | 72.8mm |
| Max Current Rating | 10A |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Number of Contacts | 20 |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Staf |
| Termination | Screw |
| Voltage Rating | 50V |
| Voltage Rating (AC) | 25V |
| Wire/Cable Gauge | 16AWG |
Compliance
| RoHS | Compliant |
Datasheet
Harting 09700202817 Datasheet
Download the complete datasheet for Harting 09700202817 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
