9-position, 1-row flexible flat cable (FFC) / flexible printed circuit (FPC) connector with Zero Insertion Force (ZIF) and Low Insertion Force (LIF) capability. Features a 2.54mm pitch and a 6A current rating, with a voltage rating of 160V. Constructed from black polymer and glass fiber, it offers copper alloy contacts with tin plating. Designed for surface mount and panel mounting, this horizontal orientation connector operates within a temperature range of -40°C to 125°C and meets UL94 V-0 flammability standards.
Voltage160V
Current6A
Voltage Rating160V
Current Rating7.3A
Quick Jump:
Technical Specifications
Harting 14110913002000 technical specifications.
General
| Color | Black |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Tin |
| Current | 6A |
| Current Rating | 7.3A |
| Depth | 5mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Length | 28.17mm |
| Material | Polymer, Glass fibre |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, Panel |
| Number of Contacts | 9 |
| Number of Levels | 1 |
| Number of Positions | 9 |
| Number of Positions Per Level | 9 |
| Number of Rows | 1 |
| Orientation | Horizontal |
| Packaging | Cut Tape |
| Pitch | 2.54mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | har-flexicon |
| Termination | SMD/SMT |
| Voltage | 160V |
| Voltage Rating | 160V |
| Width | 7mm |
Compliance
| RoHS | Compliant |
Datasheet
Harting 14110913002000 Datasheet
Download the complete datasheet for Harting 14110913002000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

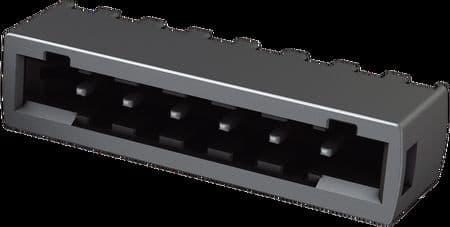

Product Images
