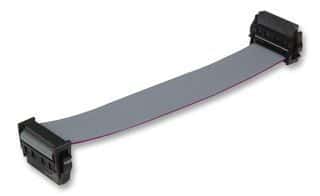

50-position, 2-row ribbon cable assembly featuring female IDC receptacle connectors on both ends. This unshielded cable assembly utilizes a 1.27mm connector pitch and a 0.635mm cable pitch, with 30AWG conductors. Constructed with copper alloy contacts plated in gold, it supports a 2A current rating and operates within a temperature range of -55°C to 125°C. The grey, 0.1m cable is RoHS compliant.
Current Rating2A
Quick Jump:
Technical Specifications
Harting 33152430100013 technical specifications.
General
Cable Pitch
0.635mm
Color
Grey
Connector Pitch
1.27mm
Connector Type A
IDC, Receptacle
Connector Type B
IDC, Receptacle
Contact Material
Copper Alloy, Gold
Current Rating
2A
Gender
Female to Female
Length
0.1m
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Number of Conductors
50
Number of Contacts
50
Number of Cores
50
Number of Positions
50
Number of Rows
2
Packaging
Bulk
Pitch
1.27mm
Primary Type
CABLE ASSEMBLY
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
har-flex
Shielding
Unshielded
Termination
IDC
Wire/Cable Gauge
30AWG
Compliance
RoHS
Compliant
Datasheet
Harting 33152430100013 Datasheet
Download the complete datasheet for Harting 33152430100013 to view detailed technical specifications.
