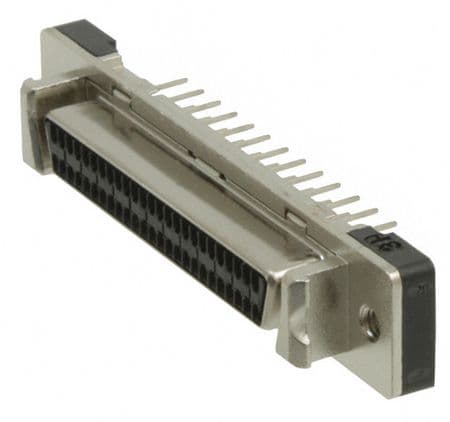

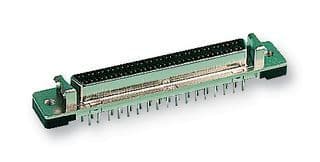

50-position, 2-row female D-Subminiature connector with straight, through-hole board mounting. Features copper alloy contacts with gold plating, rated for 1A current and 240V voltage. Constructed with a thermoplastic resin body, nickel-plated shell, and UL94 V-0 flammability rating. Operates across a temperature range of -55°C to 105°C, with a 1.27mm pitch and shielded design.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Harting 60010505102 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Body Plating | Nickel |
| Contact Material | Copper Alloy, Copper, Gold |
| Contact Plating | Gold |
| Contact Type | Signal |
| Current Rating | 1A |
| Depth | 10.5mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Lead Free | Lead Free |
| Length | 52.45mm |
| Material | Resin, Thermoplastic, Plastic |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, Board |
| Number of Contacts | 50 |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 50 |
| Packaging | Bulk |
| Pitch | 1.27mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | har-mik® |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 240V |
| Width | 52.45mm |
| RoHS | Compliant |
