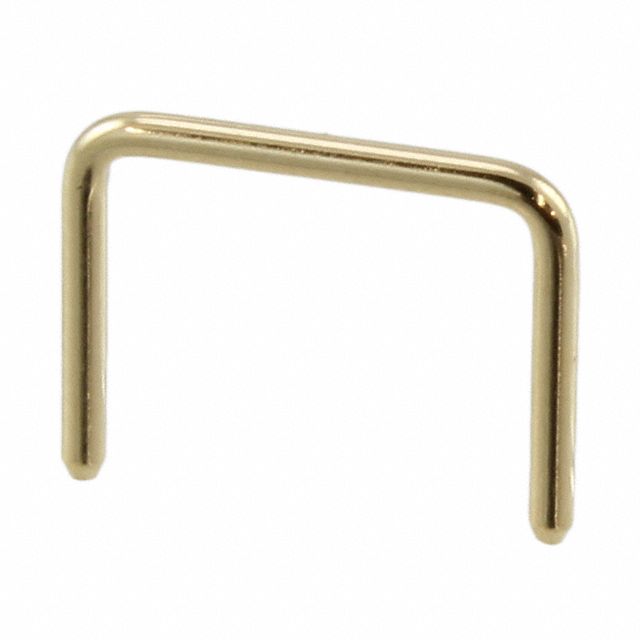

2-position, 1-row male interconnection device with a 10.16mm pitch. Features brass contacts with gold plating, a PBT non-insulated body, and a 10A current rating. Operates within a -55°C to 125°C temperature range. Designed for through-hole mounting with a 9mm body length. Supplied in bulk packaging.
Current Rating10A
MountingThrough Hole
Quick Jump:
Technical Specifications
Harwin D3082-05 technical specifications.
General
Body Length
9mm
Color
Black
Contact Material
Brass
Contact Plating
Gold
Current Rating
10A
Gender
Male
Insulation
Non-Insulated
Insulation Material
PBT
Length
9mm
Material
Brass
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
2
Number of Positions
2
Number of Rows
1
Package Quantity
2000
Packaging
Bulk
Pitch
10.16mm
Plating
Gold
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
D308
Compliance
RoHS
Compliant
Datasheet
Harwin D3082-05 Datasheet
Download the complete datasheet for Harwin D3082-05 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
