Voltage Rating120V
Current Rating2A
Quick Jump:
Technical Specifications

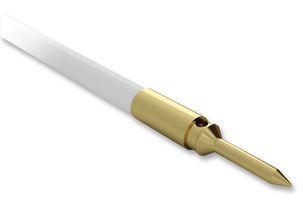

Harwin G125-MW20450L94 technical specifications.
General
Color
White
Connector Type A
Crimp
Connector Type B
Free Ends
Contact Gender
Male
Contact Material
Brass
Contact Plating
Gold
Current Rating
2A
Insulation
Insulated
Length
450mm
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Number of Conductors
1
Number of Rows
1
Package Quantity
10
Pitch
1.25mm
Reach SVHC Compliant
No
Series
Gecko
Termination
Crimp
Voltage Rating
120V
DC Rated Voltage
450V
Wire/Cable Gauge
28AWG
Compliance
RoHS
Compliant
Datasheet
Harwin G125-MW20450L94 Datasheet
Download the complete datasheet for Harwin G125-MW20450L94 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
