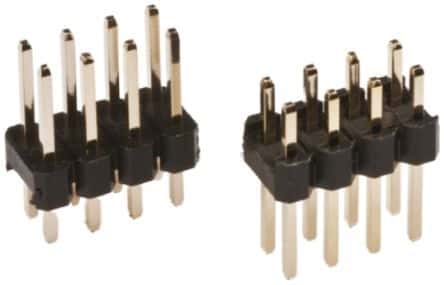

Unshrouded header, 16 positions, 2 rows, 2.54mm pitch, straight orientation, through-hole mount, solder termination. Features male pin contacts made of bronze and brass with gold plating, offering a 3A current rating. Operates within a temperature range of -40°C to 105°C. Housing color is black, with a mating length of 0.24 inches. Supplied in bulk packaging with 500 units per package.
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Harwin M20-9980845 technical specifications.
General
| Color | Black |
| Contact Material | Bronze, Brass |
| Contact Mating Length | 0.24inch |
| Contact Plating | Gold |
| Contact Type | Male Pin |
| Current Rating | 3A |
| Depth | 5.08mm |
| Gender | Male |
| Housing Color | Black |
| Length | 20.32mm |
| Max Current Rating | 3A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Contacts | 16 |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 500 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.1inch |
| Series | M20 |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Harwin M20-9980845 Datasheet
Download the complete datasheet for Harwin M20-9980845 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
