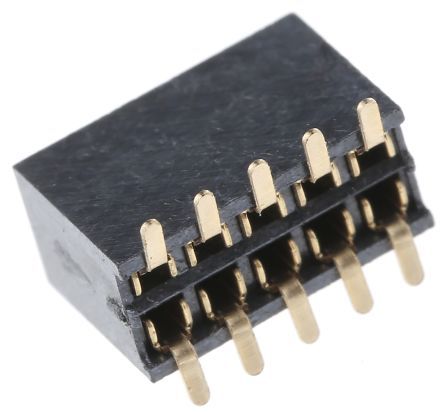

1.27mm pitch, 10-position, 2-row shrouded header receptacle with straight, top-entry SMD mounting. Features gold-plated bronze/copper contacts for 1A current rating and 250V voltage rating. Operates from -40°C to 105°C, with UL94 V-0 flammability. Housing and insulation are black polymer.
Voltage Rating250V
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
Harwin M50-3100545 technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Gender | Female |
| Contact Material | Bronze, Copper |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Current Rating | 1A |
| Depth | 3.1mm |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | Polymer |
| Length | 6.7mm |
| Mated Stacking Heights | 6.18mm |
| Max Current Rating | 1A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Surface Mount |
| Number of Contacts | 10 |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 85 |
| Packaging | Rail/Tube |
| Pitch | 1.27mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | M50 |
| Termination | Solder |
| Voltage Rating | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Harwin M50-3100545 Datasheet
Download the complete datasheet for Harwin M50-3100545 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
Product Images
