30-position, 2-row female receptacle connector with 1.27mm pitch. Features gold-plated bronze contacts for superior conductivity and durability, rated for 1A current. Surface mount termination with Nylon insulation and a UL94 V-0 flammability rating. Operates across a wide temperature range of -40°C to 105°C.
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
Harwin M50-3151542 technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Gender | Female |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Current Rating | 1A |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Insulation Color | Black |
| Insulation Material | Nylon |
| Mated Stacking Heights | 8.6mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Contacts | 30 |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Package Quantity | 31 |
| Packaging | Rail/Tube |
| Pitch | 1.27mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | ARCHER |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
Harwin M50-3151542 Datasheet
Download the complete datasheet for Harwin M50-3151542 to view detailed technical specifications.
No datasheet is available for this part.

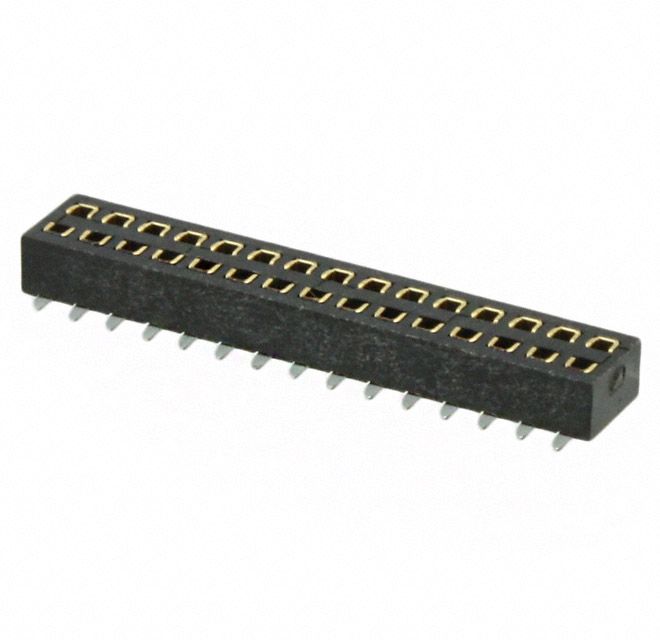

Product Images
