16-position unshrouded male header with 1.27mm pitch, featuring gold-plated copper alloy square male pins for mating. This board-to-board connector has a thermoplastic insulator in black, rated UL94 V-0 for flammability, and supports a mated stacking height of 6.23mm. Operating temperature range is -40°C to 105°C, with through-hole termination for mounting.
MountingThrough Hole
Quick Jump:
Technical Specifications
Harwin M50-3500842 technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Material | Copper Alloy, Brass |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Insulation Color | Black |
| Insulation Material | Thermoplastic |
| Mated Stacking Heights | 6.23mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Contacts | 16 |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Package Quantity | 500 |
| Packaging | Bulk |
| Pitch | 1.27mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Archer M50 |
| Termination | Through Hole |
Compliance
| RoHS | Compliant |
Datasheet
Harwin M50-3500842 Datasheet
Download the complete datasheet for Harwin M50-3500842 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

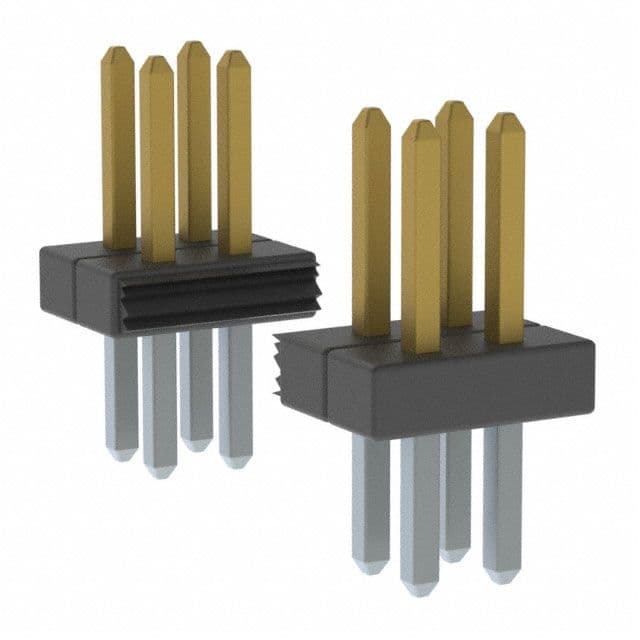

Product Images
