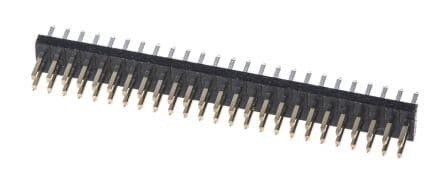

Unshrouded header with 50 male pin contacts, featuring a 1.27mm pitch and straight, top-entry orientation. Contacts are copper alloy with gold plating for mating, offering a 1A current rating and 500V DC rated voltage. The black thermoplastic insulation has a UL94 V-0 flammability rating and operates between -40°C and 105°C. This through-hole mount component is designed for board-to-board applications with a mated stacking height of 6.23mm.
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Harwin M50-3502542 technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 1A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Insulation Color | Black |
| Insulation Material | Thermoplastic |
| Mated Stacking Heights | 6.23mm |
| Material | Thermoplastic |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Contacts | 50 |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 120 |
| Packaging | Bulk |
| Pitch | 1.27mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | M50 |
| Termination | Through Hole |
| DC Rated Voltage | 500V |
Compliance
| RoHS | Compliant |
Datasheet
Harwin M50-3502542 Datasheet
Download the complete datasheet for Harwin M50-3502542 to view detailed technical specifications.
