20-position, 2-row unshrouded male header with 1.27mm pitch. Features right-angle, side-entry, through-hole termination with gold-plated bronze/copper alloy male pin contacts. Rated for 1A current and 600V voltage, with a maximum operating temperature of 105°C. Insulated with black thermoplastic, meeting UL94 V-0 flammability.
Voltage Rating600V
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Harwin M50-3901042 technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Gender | Male |
| Contact Material | Bronze, Copper Alloy |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 1A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Insulation Color | Black |
| Insulation Material | Thermoplastic |
| Material | Thermoplastic |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Contacts | 20 |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Package Quantity | 300 |
| Pitch | 1.27mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | M50 |
| Termination | Through Hole |
| Voltage Rating | 600V |
Compliance
| RoHS | Compliant |
Datasheet
Harwin M50-3901042 Datasheet
Download the complete datasheet for Harwin M50-3901042 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

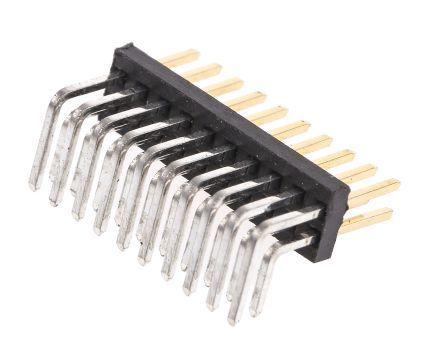

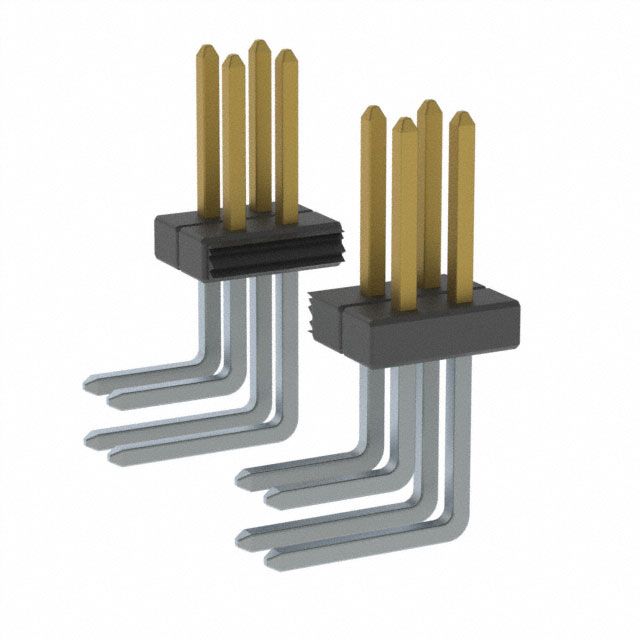

Product Images
