1.27mm pitch, 10-position, 2-row female socket strip connector for board-to-board applications. Features straight, surface mount termination with a solder contact type and gold plating for mating. Rated for 1A current and 500V voltage, with a maximum operating temperature of 105°C. Constructed with bronze contacts and a black polymer housing, this connector offers a mated stacking height of 6.5mm and is supplied in a tube.
Voltage Rating500V
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
Harwin M50-4300545 technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Gender | Female |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Current Rating | 1A |
| Depth | 3.6mm |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | Polymer |
| Length | 8.23mm |
| Mated Stacking Heights | 6.5mm |
| Max Current Rating | 1A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Contacts | 10 |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Rail/Tube |
| Pitch | 1.27mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Archer M50 |
| Termination | Solder |
| Voltage Rating | 500V |
| Weight | 0.006385oz |
Compliance
| RoHS | Compliant |
Datasheet
Harwin M50-4300545 Datasheet
Download the complete datasheet for Harwin M50-4300545 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

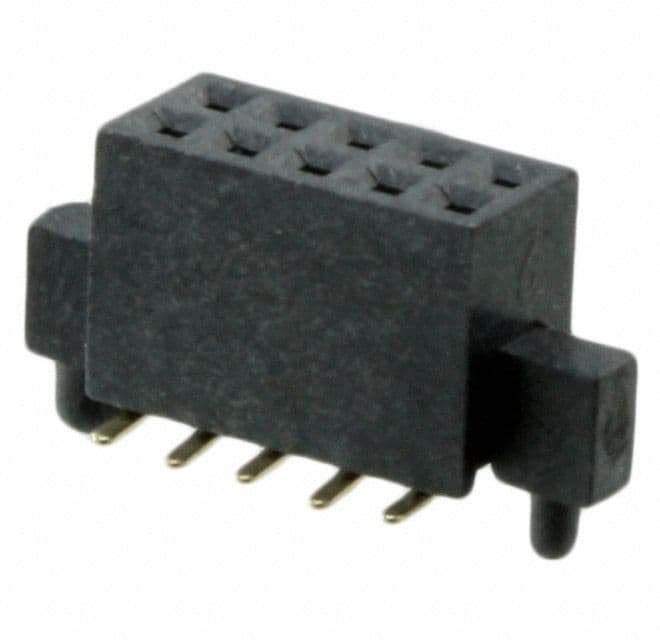

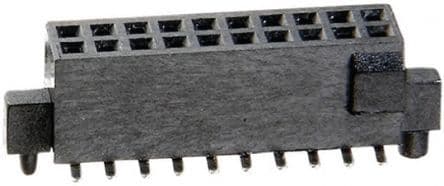

Product Images
