2-position, 1-row straight receptacle with female contacts made of gold-plated bronze. This blue polyester interconnection device features a 2.54mm pitch, 3A current rating, and 250V voltage rating, suitable for up to 300 mating cycles. Operating temperature range is -40°C to 85°C, with a UL94 V-0 flammability rating.
Voltage Rating250V
Current Rating3A
Quick Jump:
Technical Specifications
Harwin M7683-05 technical specifications.
General
Color
Blue
Contact Gender
Female
Contact Material
Bronze
Contact Plating
Gold
Current Rating
3A
Depth
2.4mm
Flammability Rating
UL94 V-0
Gender
Receptacle
Height
0.551inch
Housing Color
Blue
Lead Pitch
2.54mm
Length
14mm
Material
Polyester
Mating Cycles
300
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Number of Contacts
2
Number of Positions
2
Number of Rows
1
Orientation
Straight
Package Quantity
1000
Packaging
Bulk
Pitch
2.54mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
M76
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Width
5mm
Compliance
RoHS
Compliant
Datasheet
Harwin M7683-05 Datasheet
Download the complete datasheet for Harwin M7683-05 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

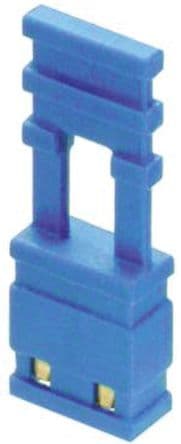

Product Images
