2-position, 1-row straight receptacle interconnection device with a 2.54mm pitch. Features gold-plated bronze female contacts and a black polyester body with UL94 V-0 flammability rating. Rated for 250V and 3A, with 300 mating cycles and an operating temperature range of -40°C to 85°C.
Voltage Rating250V
Current Rating3A
Quick Jump:
Technical Specifications
Harwin M7686-05 technical specifications.
General
Body Length
10mm
Color
Black
Contact Gender
Female
Contact Material
Bronze
Contact Plating
Gold
Current Rating
3A
Depth
2.4mm
Flammability Rating
UL94 V-0
Gender
Receptacle
Housing Color
Black
Lead Pitch
2.54mm
Length
10mm
Material
Polyester
Mating Cycles
300
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Number of Contacts
2
Number of Positions
2
Number of Rows
1
Orientation
Straight
Package Quantity
2500
Packaging
Bulk
Pitch
2.54mm
Plating
Gold
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
M76
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Width
5mm
Compliance
RoHS
Compliant
Datasheet
Harwin M7686-05 Datasheet
Download the complete datasheet for Harwin M7686-05 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

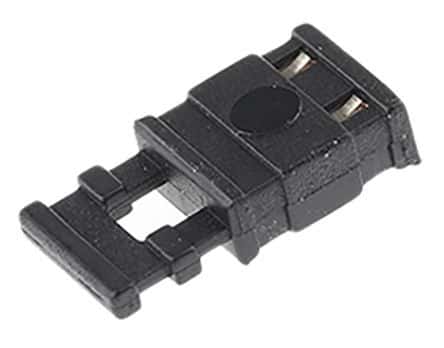

Product Images
