2-position, 1-row female interconnection device with a 2.54mm pitch. Features gold-plated bronze contacts, a black polyester housing, and a straight orientation. Rated for 3A current and 250V AC, operating between -40°C and 85°C. UL94 V-0 flammability rating.
Voltage Rating250V
Current Rating3A
Quick Jump:
Technical Specifications
Harwin M7967-05 technical specifications.
General
Body Length
10.3mm
Color
Black
Contact Gender
Female
Contact Material
Bronze
Contact Plating
Gold
Current Rating
3A
Depth
2.3mm
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
Black
Length
6.3mm
Material
Polyester
Max Current Rating
3A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Number of Contacts
2
Number of Positions
2
Number of Rows
1
Orientation
Straight
Package Quantity
2500
Packaging
Bulk
Pitch
2.54mm
Plating
Gold
Radiation Hardening
No
RoHS Compliant
Yes
Series
M79
Voltage Rating
250V
Compliance
RoHS
Compliant
Datasheet
Harwin M7967-05 Datasheet
Download the complete datasheet for Harwin M7967-05 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

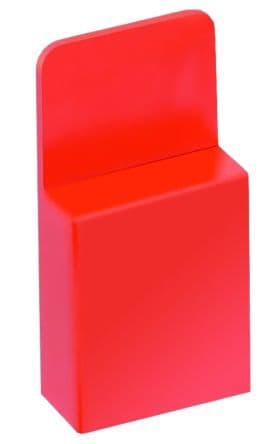

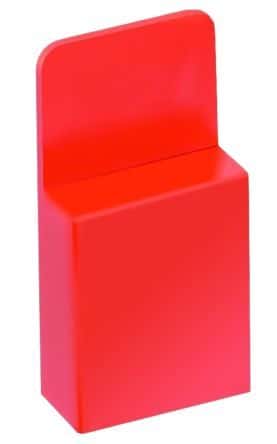

Product Images
