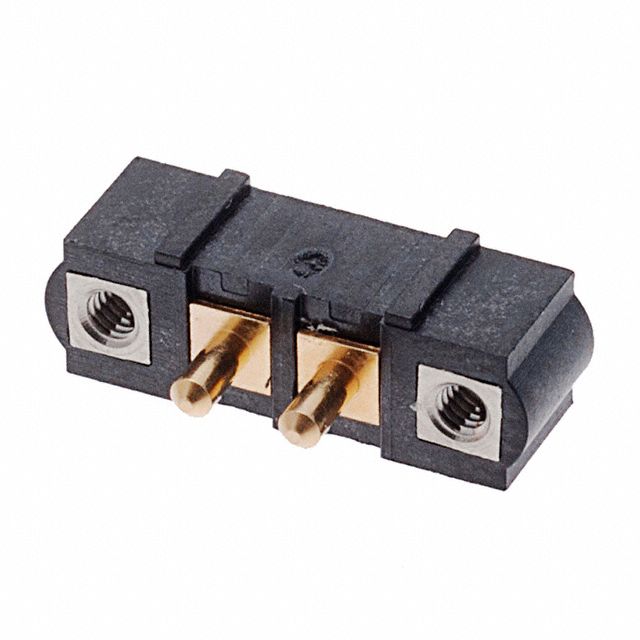

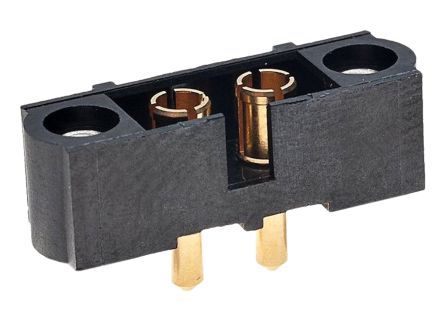

2-position male shrouded header with 4mm pitch, designed for through-hole mounting. Features brass male pin contacts with gold plating, rated for 20A current and 120V voltage. This black, single-row connector offers solder termination and is UL94 V-0 flammability rated. Packaged in a tube, it is RoHS compliant.
Voltage Rating120V
Current Rating20A
MountingThrough Hole
Quick Jump:
Technical Specifications
Harwin M80-5000000M1-02-331-00-000 technical specifications.
General
Color
Black
Contact Gender
Male
Contact Material
Brass
Contact Plating
Gold
Contact Type
Male Pin, Power
Current Rating
20A
Flammability Rating
UL94 V-0
Gender
Male
Mount
Through Hole
Number of Contacts
2
Number of Positions
2
Number of Rows
1
Package Quantity
1
Packaging
Rail/Tube
Pitch
0.157inch
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Datamate Mix-Tek
Termination
Solder
Voltage Rating
120V
Compliance
RoHS
Compliant
Datasheet
Harwin M80-5000000M1-02-331-00-000 Datasheet
Download the complete datasheet for Harwin M80-5000000M1-02-331-00-000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
