14-position, 2-row shrouded header with straight, through-hole mounting and solder termination. Features male pin contacts with gold plating over bronze and copper, offering a 3A current rating and 120V voltage rating. Insulation is black glass with a UL94 V-0 flammability rating. Operating temperature range is -55°C to 125°C, with a mated stacking height of 14.75mm.
Voltage Rating120V
Current Rating3A
MountingThrough Hole
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Harwin M80-5101442 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Harwin M80-5101442 technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Gender | Male |
| Contact Material | Bronze, Copper |
| Contact Plating | Gold |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating | 3A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Insulation Color | Black |
| Insulation Material | Glass |
| Mated Stacking Heights | 14.75mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 14 |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 11 |
| Packaging | Rail/Tube |
| Pitch | 2mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 2mm |
| Series | Datamate J-Tek |
| Termination | Solder |
| Voltage Rating | 120V |
| DC Rated Voltage | 120V |
Compliance
| RoHS | Compliant |
Datasheet
Harwin M80-5101442 Datasheet
Download the complete datasheet for Harwin M80-5101442 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

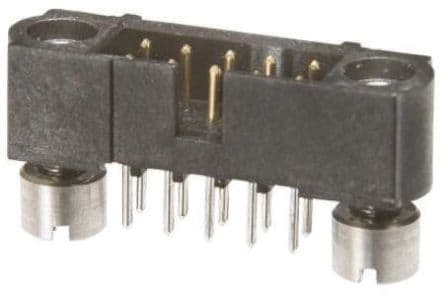

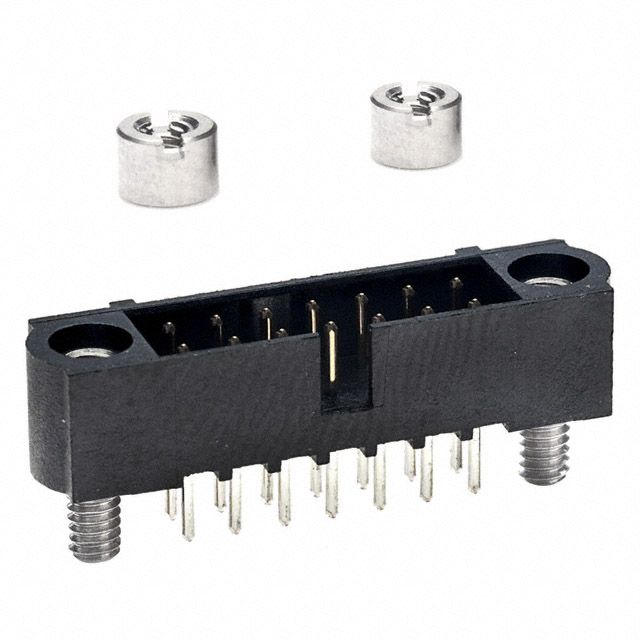

Product Images
